Economical Type Black Bridge Type Cable Chain
- Min. Order:
- 1 Meter
- Min. Order:
- 1 Meter
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 4000M per month |
| Supply Ability: | 1000 Meter per Week |
| Payment Type: | L/C,D/P,D/A,T/T,Paypal,Money Gram |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES |
| Certificate: | ISO9001,CE |
| HS Code: | 3926909090 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai Port |

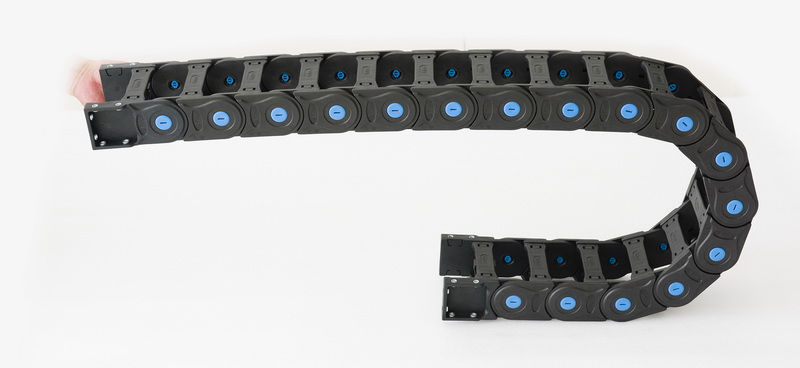

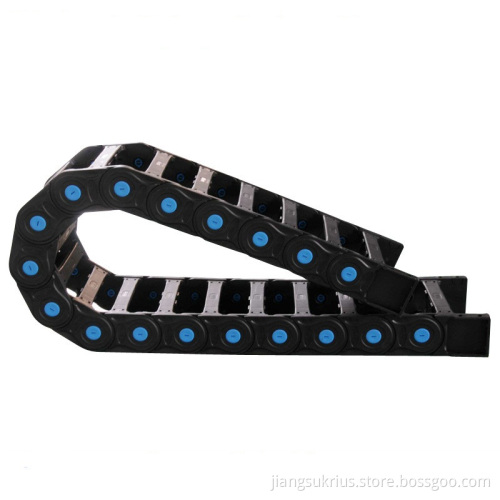

This is a bridge type plastic drag chain which is designed with a longer overhead length, it is more suitable for a long travelling distance. It is a bridge type model of plastic cable drag chain with cross bars, the cross bars are removable along both the inner and outer radius. The mounting ends for this model of plastic cable carrier are four-piece brackets with screw holes on different sides.
The pitch of this plastic cable carrier is 46mm, the inner height is 28.2mm and the outer height is 43mm. There are 8 options for the width, inner 41mm & outer 61mm, inner 51mm & outer 71mm, inner 63mm & outer 83mm, inner 71mm & outer 91mm, inner 76mm & outer 96mm, inner 88mm & outer 108mm, inner 101mm & outer 121mm, and inner 126mm & outer 146mm. There are many options for the bending radius, 55mm, 63mm, 75mm, 100mm, 125mm, 150mm, 175mm, 200mm, and 250mm respectively.
This plastic cable carrier with cross bars is made from PA6, the nylon material is from selective suppliers who have worked with us for several years. Through long time cooperation, our company mastered the technical data and the features of the raw material and the suppliers also know the quality requirement of our company and the products very well. It is very helpful for keeping the stability of the plastic drag chain and offering good products to the customers.
| Model | Description | Material | Color |
Inner H*W (mm) |
Outer H*W (mm) |
Bending Radius (mm) |
Pitch (mm) |
EXW/m(USD) (without brackets) |
Net Weight/m |
| ZQ28 | Cable chain | Nylon 6 + 30% Glass Fibre | black | 28.2*41 | 43*61 |
55/63/75/ 100/125/150/ 175/200/250 |
46 | 14.56 | 0.91 |
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 28.2*51 | 43*71 | 46 | 15.93 | 1.18 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 28.2*63 | 43*83 | 46 | 16.64 | 1.32 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 28.2*71 | 43*91 | 46 | 17.05 | 1.40 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 28.2*76 | 43*96 | 46 | 17.87 | 1.48 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 28.2*88 | 43*108 | 46 | 18.43 | 1.59 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 28.2*101 | 43*121 | 46 | 18.89 | 1.68 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 28.2*126 | 43*146 | 46 | 19.55 | 1.81 |
1: Are you factory or only company?
We are a manufacturer with workshops to produce products such as cable chain, guard shield, bellow covers which help protect your machines.
2: Why we can choose you?
1) Professional-- We have worked in the this industry for more than 20 years,our products have been tested by coutless clients.
2) Relialbe -- We are a real factory, we follow principle of win-win.
3) Competitiveness -- All products are made within our factory, short links of transaction is going to save your money.
3: How about the shipping cost?
If your goods is not large, we can make delivery via express or air, if your goods is large, we will give you options on different Trade term for your selection.
4: How about the price?
Final quotation is according to receiving full description of the product you want, size, material, quantity etc.
5: How about the sample time? What about the payment?
Sample time 7-15 days after your payment received depends on different models you select.
T/T, 30% deposit, balance before shipment, we can accept flexible payment by West Union, Paypal, Credit card etc.
