Heavy Loading Bridge Type Cable Chain
- Min. Order:
- 1 Meter
- Min. Order:
- 1 Meter
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China |
|---|---|
| Productivity: | 2000 meters per month |
| Supply Ability: | 1000 meters per week |
| Payment Type: | L/C,D/P,D/A,T/T,Money Gram,Paypal |
| Incoterm: | DES,DAF,Express Delivery,DDU,DDP,DEQ,CIP,CPT,FCA,FAS,EXW,CIF,CFR,FOB |
| Certificate: | ISO9001, CE |
| HS Code: | 3926909090 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai Port |

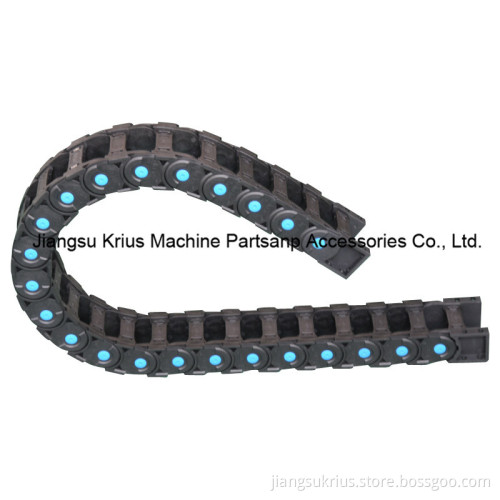

The structure of this model of plastic drag chain is designed for heavy loading use, the wall thickness of the link is thicker which is aimed to support big size cables or tubes. This model of plastic drag chain has a longer overhead length, it is more suitable for big machines with longer travelling distance. The cable carrier are with cross bars on both sides, which are removable along both the inner radius and outer radius. The mounting ends are four-piece brackets with screw holes on different sides.
The pitch of this model of plastic cable carrier is 115mm, the inner height is 80mm. There are a big range of selections for the inner width as 75mm, 100mm, 125mm, 150mm, 175mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm and 600mm respectively. About the bending radius, many options are available as 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 500mm, 600mm, 650mm and 1000mm.
| Model | Description | Material | Color |
Inner H*W (mm) |
Outer H*W (mm) |
Bending Radius (mm) |
Pitch (mm) |
EXW/m(USD) (without brackets) |
Net Weight/m |
| ZLQ80 | Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*75 | 109*123 |
150/200/250/ 300/350/400/ 500/600/650/ 1000 |
115 | 52.39 | 4.67 |
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*100 | 109*148 | 115 | 53.60 | 4.84 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*125 | 109*173 | 115 | 54.68 | 5.00 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*150 | 109*198 | 115 | 55.96 | 5.18 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*175 | 109*223 | 115 | 57.29 | 5.36 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*200 | 109*248 | 115 | 58.44 | 5.53 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*250 | 109*298 | 115 | 61.81 | 5.87 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*300 | 109*348 | 115 | 63.98 | 6.17 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*350 | 109*398 | 115 | 66.40 | 6.52 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*400 | 109*448 | 115 | 68.95 | 6.88 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*450 | 109*498 | 115 | 71.50 | 7.24 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*500 | 109*548 | 115 | 74.94 | 7.60 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*550 | 109*598 | 115 | 77.49 | 7.96 | ||
| Cable chain | Nylon 6 + 30% Glass Fibre | black | 80*600 | 109*648 | 115 | 80.10 | 8.33 |
1: Are you factory or only company?
We are a manufacturer with workshops to produce products such as cable chain, guard shield, bellow covers which help protect your machines.
2: Why we can choose you?
1) Professional-- We have worked in the this industry for more than 20 years,our products have been tested by coutless clients.
2) Relialbe -- We are a real factory, we follow principle of win-win.
3) Competitiveness -- All products are made within our factory, short links of transaction is going to save your money.
3: How about the shipping cost?
If your goods is not large, we can make delivery via express or air, if your goods is large, we will give you options on different Trade term for your selection.
4: How about the price?
Final quotation is according to receiving full description of the product you want, size, material, quantity etc.
5: How about the sample time? What about the payment?
Sample time 7-15 days after your payment received depends on different models you select.
T/T, 30% deposit, balance before shipment, we can accept flexible payment by West Union, Paypal, Credit card etc.
