Heavy Loading Bridge Type Cable Carrier

$52.10 - $90.46/Meter

Min. Order:: 1 Meter

Min. Order:: 1 Meter

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China
Productivity:	3000 meters per month
Supply Ability:	1000 meters per week
Payment Type:	L/C,D/P,D/A,T/T,Paypal,Money Gram
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
Certificate:	ISO9001; CE
HS Code:	3926909090
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai Port

Product Description

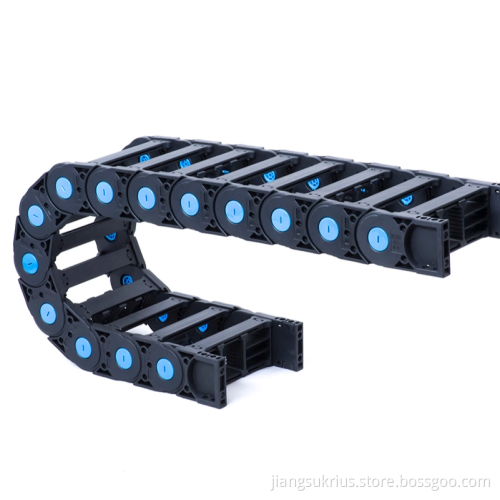

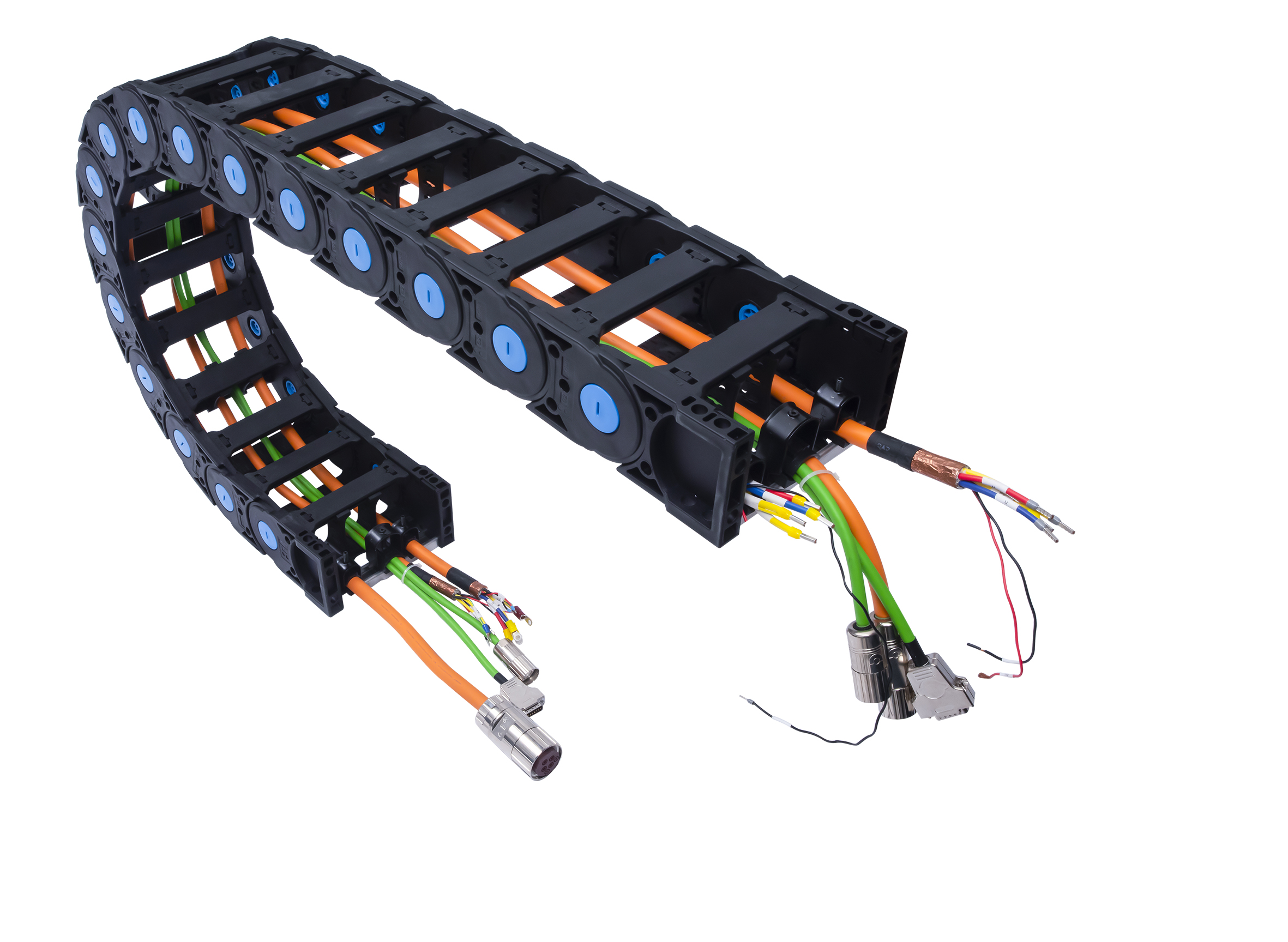

This series plastic cable carrier are with cross bars along both the inner sides and outer side of the radius, which are removable. The mounting ends are four-piece brackets with screw holes on different sides. This series of plastic drag chain has a longer overhead length, it is more suitable for big machines with longer travelling distance. ZLQ series reinforced plastic cable carrier includes 3 split models as ZLQ55, ZLQ62 an ZLQ80. They are classified according to different inner height, ZLQ55 is with inner height as 55mm, ZLQ62 is with inner height as 62mm and ZLQ80 is with inner height as 80mm. The structure of this series of plastic drag chain is designed for heavy-duty use, the thicker wall of the link is aimed to support big sized cables or tubes. The plastic drag chain is produced under strict control required by ISO 9001 system, it has been verified by laboratory test. Innovative design of structure and function of this plastic cable carrier has obtained several national patents.

Model	Description	Material	Color	Inner H*W (mm)	Outer H*W (mm)	Bending Radius (mm)	Pitch (mm)	Feature	EXW/m(USD) (without brackets)	Net Weight/m
ZLQ55	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*75	84*123	130/150/175/ 200/225/250/ 300/350/400	91	Heavy loading, Bridge	52.10	4.63
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*100	84*148		91		53.59	4.84
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*125	84*173		91		54.90	5.03
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*150	84*198		91		56.23	5.21
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*175	84*223		91		58.02	5.47
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*200	84*248		91		59.50	5.68
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*250	84*298		91		63.32	6.08
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*300	84*348		91		65.98	6.46
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*350	84*398		91		68.94	6.88
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*400	84*448		91		72.13	7.33
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*450	84*498		91		75.25	7.77
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*500	84*548		91		79.26	8.21
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*550	84*598		91		82.37	8.65
	Cable chain	Nylon 6 + 30% Glass Fibre	black	55*600	84*648		91		85.49	9.09
ZLQ62	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*75	91*119	150/200/250/ 300/350/400/ 500/600/650/ 1000	98		45.31	3.67
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*100	91*144		98		46.69	3.87
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*125	91*169		98		47.90	4.04
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*150	91*194		98		49.33	4.24
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*175	91*229		98		50.74	4.44
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*200	91*244		98		52.16	4.64
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*250	91*294		98		55.69	5.00
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*300	91*344		98		58.12	5.35
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*350	91*394		98		60.78	5.72
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*400	91*444		98		63.63	6.12
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*450	91*494		98		66.46	6.52
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*500	91*544		98		70.26	6.93
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*550	91*594		98		73.20	7.35
	Cable chain	Nylon 6 + 30% Glass Fibre	black	62*600	91*644		98		90.46	9.79
ZLQ80	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*75	109*123	150/200/250/ 300/350/400/ 500/600/650/ 1000	115		52.39	4.67
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*100	109*148		115		53.60	4.84
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*125	109*173		115		54.68	5.00
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*150	109*198		115		55.96	5.18
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*175	109*223		115		57.29	5.36
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*200	109*248		115		58.44	5.53
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*250	109*298		115		61.81	5.87
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*300	109*348		115		63.98	6.17
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*350	109*398		115		66.40	6.52
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*400	109*448		115		68.95	6.88
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*450	109*498		115		71.50	7.24
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*500	109*548		115		74.94	7.60
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*550	109*598		115		77.49	7.96
	Cable chain	Nylon 6 + 30% Glass Fibre	black	80*600	109*648		115		80.10	8.33

Heavy Loading Bridge Type Cable Carrier

1: Are you factory or only company?
We are a manufacturer with workshops to produce products such as cable chain, guard shield, bellow covers which help protect your machines.

2: Why we can choose you?
1) Professional-- We have worked in the this industry for more than 20 years,our products have been tested by coutless clients.
2) Relialbe -- We are a real factory, we follow principle of win-win.
3) Competitiveness -- All products are made within our factory, short links of transaction is going to save your money.

3: How about the shipping cost?
If your goods is not large, we can make delivery via express or air, if your goods is large, we will give you options on different Trade term for your selection.

4: How about the price?
Final quotation is according to receiving full description of the product you want, size, material, quantity etc.

5: How about the sample time? What about the payment?
Sample time 7-15 days after your payment received depends on different models you select.
T/T, 30% deposit, balance before shipment, we can accept flexible payment by West Union, Paypal, Credit card etc.
