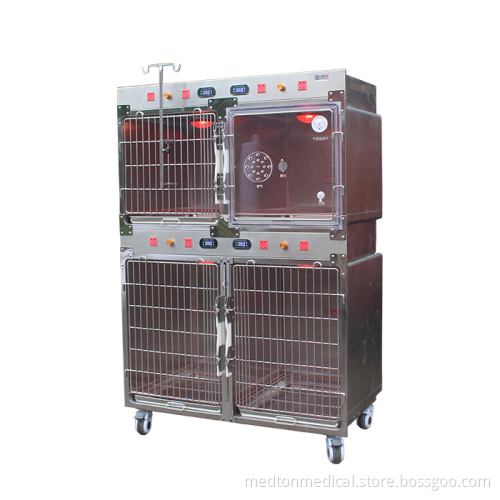

Veterinary Stainless Steel Oxygen Cage
  • Veterinary Stainless Steel Oxygen Cage
  • Veterinary Stainless Steel Oxygen Cage
  • Veterinary Stainless Steel Oxygen Cage
  • Veterinary Stainless Steel Oxygen Cage
  • Veterinary Stainless Steel Oxygen Cage
Veterinary Stainless Steel Oxygen Cage
Veterinary Stainless Steel Oxygen Cage
Veterinary Stainless Steel Oxygen Cage
Veterinary Stainless Steel Oxygen Cage
Veterinary Stainless Steel Oxygen Cage

Veterinary Stainless Steel Oxygen Cage

  • $1560.00
    5-14 Piece/Pieces
  • $1000.00
    ≥15 Piece/Pieces
Transportation:
Ocean, Land, Air, Express
Port:
Shanghai Port, Ningbo Port
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Jiangsu China
Productivity: 300 pieces per month
Supply Ability: 300 Piece/Pieces per month
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW,CIP
Certificate: ISO CE
HS Code: 7308900000
Transportation: Ocean,Land,Air,Express
Port: Shanghai Port,Ningbo Port
Product Description
Product Description
Technical features:

1. Vet oxygen cage structure is reasonable, super pressure, strong and durable.

2. Unique sliding door lock design, automatic locking, good safety.
3. Pedal mesh and cage door high frequency and high current welding, strong without welding.
4. The whole round corners of the dirt plate are designed, no dead corners are left, convenient washing.
5. Internal seamless water retaining edge, more convenient and sanitary.
6. Lower cage movable drawing board design, drawing board can be turned into a large cage.
7. The bottom moving brake wheel, silent, wear-resistant, easy to shift and fix.
8. Innovative design of cage, exquisite and chic. Optional combination, can be customized.
9. Equipped with warm light, oxygen door, 16-bit power interface, wet and dry temperature display, leakage protection.

10. Thermostat, over temperature electric power off, safe and reliable

Icu Cage6 Jpg

Icu Cage4 1 Jpg



Material

The overall 304 stainless steel material, anticorrosive, acid-proof rust, cage material thickness of 1.2mm, cage door with diameter of 8mm and 6mm steel wire composition, foot mesh with diameter of 10mm and 4mm steel wire composition, connect the sewage plate material thickness of 0.8mm. The bottom moving wheel adopts high-strength medical universal brake wheel.







Specifications:


cage chart

Overall size
1220*700*1810mm(L*D*H)
The upper cage
610*610*700mm (L*H*D)
The under cage
610*820*700mm (L*H*D)
Dirt receiving basin
687*540*45mm (L*W*H)
Pedal mesh
687*545*10mm (L*W*T)
The upper cage door
470*480*8mm (L*H*T)
The uder cage door
530*690*8mm (L*H*T)
 Power supply layer
1220*600*120mm (L*W*H)
