12inch Multi Parameter Vital Sign Patient Monitor
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai Port, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China |
|---|---|
| Productivity: | 2000pcs/Month |
| Supply Ability: | 2000 Piece/Month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,Express Delivery |
| Certificate: | CE, ISO |
| HS Code: | 9018193010 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai Port,Guangzhou |

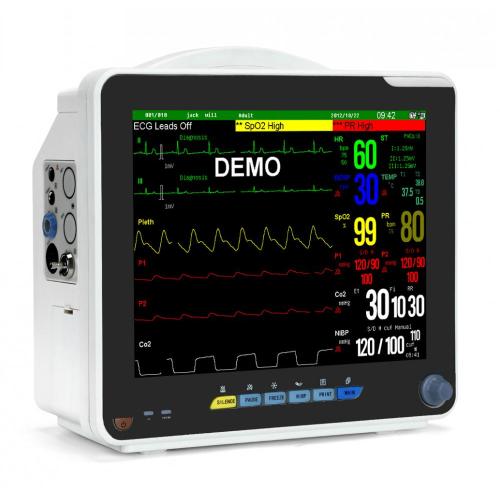

12inch Touch Screen Patient Monitor
Technical features:
1. Display: 12.1'color TFT screen, high resolution: 800×600 dpi;
2. 6 Parameters: Standard - 5-lead ECG/HR, NIBP, SPO2, Temp., Resp., PR;
3. Optional: Touch Screen, Printer,:3/12-lead ECG, single/double IBP, double Temp., Sun Tech NIBP, Masimo/Nellcor Spo2, ETCO2,BIS,CO;
4. Patient Range: Suitable for Adult, Pediatric, Neonate;
Multi-display interface: Standard, Large font, Trend Coexist, OxyCRG dynamic, 7 full ECG waveforms;
5. Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian);
6. Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP records and 200 alarm event;
7. Battery: Built-in 2 hours rechargeable lithium battery, and battery volume display. 4 hours rechargeable lithium battery (optional);
8. Network: TCP/IP networking platform, connect with central monitoring system. Wifi central monitoring system (optional).
9. Advance patient Manage: gender, full name, ID no., room no., bed no., weight,height, blood type, paced or not, remakes;
10. Multi-parameter board: Separated parameter board, main board, ECG board, SPO2 board, and NIBP board are independent;
11. Interface: Color, layout of each parameters can be set up by user need, bed to bed view display(optional);
12. Fanless: Use special fanless cooling technology in the device to provide users quiet environment;
13. Analysis: Real time S-T segment analysis, and 20 type arrhythmic analysis; SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations;
14. Storage: external SD card slot enables memory extension(optional);
15. Data transfer: USB port to allow to transfer patient data to a PC (optional);
Special MEDTON F-6 Spo2 technology: which is as correct as Nellcor spo2 but cheaper than it(optional);
Resistance to interference : Efficient resistance to interference of defibrillator and HF knife;
6 Standard Parameter for MED-PM900N Vital Sign Patient Monitor:
| ECG | |
| Input | 3/5 wire ECG cable |
| Lead section | I II III aVR, aVL, aVF, V |
| Gain selection | *0.25, *0.5, *1, *1.2 |
| Sweep speed | 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s |
| Heart rate range | 15-30bpm |
| Calibration | ±1mv |
| Accuracy | ±1bpm or ±1% (select the bigger data) |
| NIBP | |
| Test method | Oscillometer |
| Philosophy | Adult, Pediatric and Neonate |
| Measurement type | Systolic Diastolic Mean |
| Measurement parameter | Automatic, Continuous measurement |
| Measurement method Manual | mmHg or ±2% |
| SPO2 | |
| Display Type | Waveform, Data |
| Measurement range | 0-100% |
| Accuracy | ±3% (between 70%-100%) |
| Pulse rate range | 20-300bpm |
| Accuracy | ±1bpm or ±2% (select the bigger data) |
| Resolution | 1bpm |
| 2-Temperature (Rectal & Surface) | |
| Number of channels | 2 channels |
| Measurement range | 0-50ºC |
| Accuracy | ±0.2ºC |
| Display | T1, T2, T |
| Unit | ºC/ºF selection |
| Refresh cycle | 1s-2s |
| Respiration (Impedance & Nasal Tube) | |
| Measurement type | 0-150rpm |
| Accuracy | ±1bm or ±5%, select the bigger data |
| Resolution | 1rpm |
| Packing Information | |
| Packing size | 37*37*28cm |
| N.W. | 6kg/7kg |
|
Standard Accessories for Multi Parameter Patient Monitor 1. 5 lead ECG cable---------------------------------------- 1set 2. Adult Spo2 probe--------------------------------------- 1set 3. Adult NIBP Cuff and extension tube---------------- 1set 4. Temp probe----------------------------------------------- 1set 5. Ground connecting liner------------------------------- 1set 6. ECG Chest electrode (10pcs/pack)------------------ 1pack 7.2200mA lithium battery--------------------------------- 1PCS. |
