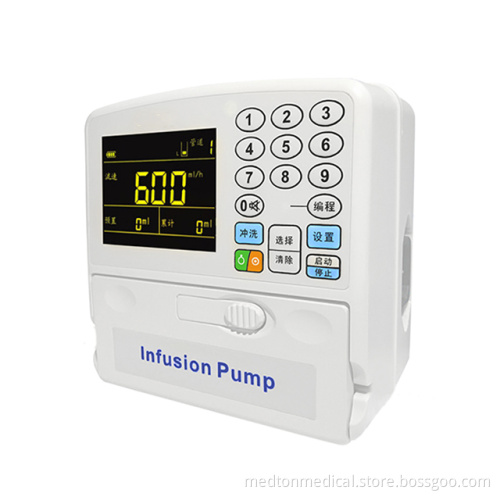

Portable Mini Infusion Pump with Piggyback mode

1. Large and HD LCD display;

2. Lightweight & Compact, small size for easy carry and economical transport;

3. Compatible with infusion tubes of any standard;

4. Humanization Design to create better User Experience;

5. KVO & Bolus function, 3 Infusion Modes, 3 Occlusion Levels.

6. Piggyback function for addition of extra drugs during infusion

7. Audiovisual alarms,shockproof and waterproof

Technical parameters:

1. Infusion mode: Rate mode, Drop mode, Piggyback mode

2. Infusion set:  Any brand of infusion set

3. Infusion accuracy: ±5%(±3% after proper calibration)

4. Infusion rate range: 1~600 ml/h, increment 1 ml/h

5. KVO rate: 6ml/h

6. Purge/Bolus rate: 600 ml/h

7. Piggy function: Piggy rate: 1~600 ml/h, Piggy VTBI: 1~9999 ml

8. Volum To Be Infused(VTBI): 1~9999 ml

9. Air Bubble detection:   Ultrasound sensor detection of air bubble

10. Occlusion detection: Occlusion pressure detection adjustable on 3 levels

11. Alarm: Over, Low battery, Air, Occl, AC power failure, Door open, Error

12. Displayed information:  Rate, VTBI, VI, air, occlusion, over, AC / battery symbol, L.batt., Er, door open, tube, occlusion level

13. Power supply: AC 110-240V 50-60HZ

14. Battery: Rechargeable lithium battery, 7.4 V, 2400mAh;
Can work continuously for 3.5 hours at the rate of 25ml/h
