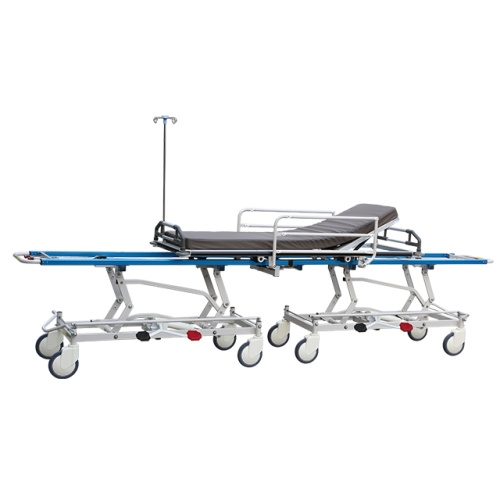

Hospital Manual Connecting Transfer Trolley

 Technical features :

1. The base of the connecting emergency bed adopts steel structure, the stretcher is made of high-strength aluminum alloy.

2. It is used to transport patients between operating room and wards in Hospitals.

3. Mat is sewed high density polyethylene coated PVC material, built-in peak sponge. Thickness 100mm.

4. Equipped with adjustable three-stage I.V. Stand, The maximum adjustable length is 80cm

5. The surface can be separated from the bed, and can be used as a stretcher alone.

6. This stretcher adopts hydraulic lifting mechanism, and the backrest angle is adjusted by gas spring.

7. The universal wheels can be adjusted in three positions: the first position: go straight, the second position: universal, the third position: locked.

8. Wheel size: Ø200mm.

   ( It has patent)

9. A part                                                                              B part

    High position: 200×74×93cm                                           High position: 200×65×85cm

    Low position: 200×74×54cm                                            Low position: 200×65×47cm

    Packing quantity: 1                                                           Packing quantity: 1

    Packing size: 213×75×71cm                                            Packing size: 205×67×47cm
