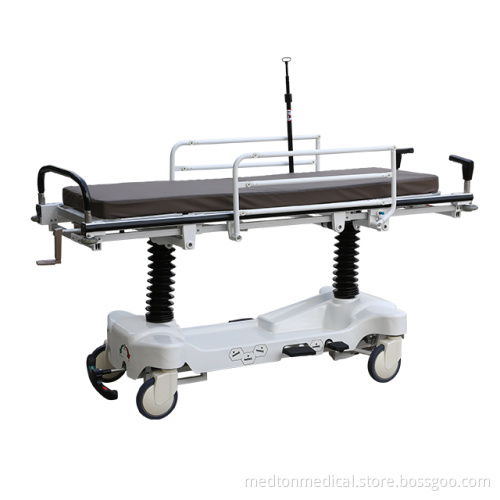

Hydraulic Aluminum Emergency Hospital Trolley Bed

Technical features :

1. The emergency bed is mainly made of steel and aluminum material.

2. The bed uses folding handles which is convenient for transporting.

3. The height of the bed can be adjusted freely, the highest is 105cm, the lowest is 74cm.

4. The front and rear angle of the bed can be changed freely, the angle of front is 15°, the angle of rear is 15°.

5. Mat is sewed high density polyethylene coated PVC material, built-in peak sponge. Thickness 100mm.

6. Equipped with adjustable three-stage I.V. Stand, The maximum adjustable length is 80cm.

7. This stretcher adopts hydraulic lifting mechanism, and the backrest angle is adjusted by gas spring.

8. The whole height, backward and forward leaning angle of the bed are all controlled by hydraulic control.

9. This stretcher is equipped with central control brake device.

10. The universal wheels can be adjusted in three positions: the first position: go straight, the second

position:            universal, the third position: locked.

11. Wheel size: Ø200mm.

12. High position: 212×80×93cm           Low position: 212×80×63cm

      Packing quantity: 1                           Packing size: 226×86×83cm
