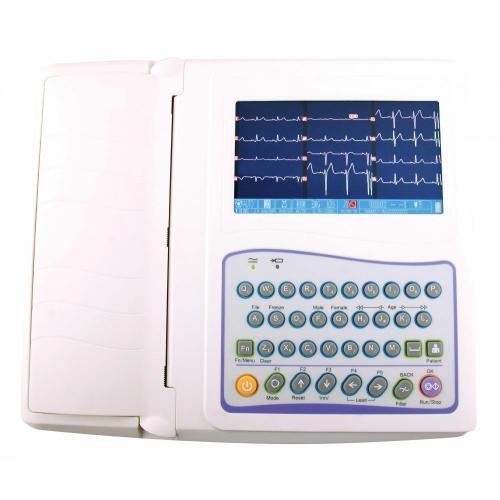

12 Channel Electrocardiograph Machine

$700.00 - $800.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai Port, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China
Productivity:	2000pcs/Month
Supply Ability:	2000 Piece/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,Express Delivery
Certificate:	CE, ISO
HS Code:	9018110000
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai Port,Guangzhou

Product Description

12 Channel Electrocardiograph Machine

Features

Work modes: Manual/Auto/Arrhythmia analysis modes

7 inch colour LCD with Alphabet keyboard

Alphabetic keyboard for patient information

Built in rechargeable Li-ion battery

Adaptor 110-230V, 50/60Hz AC power supply

Real-time ECG waveform, 250 patients save/replay

Built in USB/RS232 interface(ECGNET software Optional)

Technical Specification for Digital 12 Channel ECG Machine

Lead standard 12 leads

Calibrating voltage: 1mV±2%

Voltage tolerance: ≥±500mV

Inter-channel interference:≤0.5mm

Frequency response: 0.05~160Hz(-3db)

Patient current leakage: <10μA

Noise level: <15μVp-p

Sensitivity valve: ≤20μV

Paper speed:6.25,12.5, 25,50mm/s(±3%)

Time constant: ≥3.2s

Input dynamic range: ±10Vpp

Filter:

AC flter: 50Hz / 60Hz

EMG filter: 25Hz / 45Hz

Anti-drift filter: 0.15Hz(Adaptive)

Sensitivity: 5,10,20mm/mV

CMMR: ≥120dB (with AC filter

Input impedance: ≥50MΩ

Input circuit current:≤0.05μA

Work mode: MAN,AUTO,ANALYSIS modes

Lead acquisition 12bit /1000Hz(synchronously 12 leads)

Input circuit: floating; protection circuit against defibrillator effect

Accessories for ECG Holter Monitor

Patient cable	1 set
Limb electrode	4 sets
Chest elelctrodes	6 sets
Gounding cable	1 set
Paper axis	1 set
Thermal paper	1 set
Fuse	2 sets
3-cord power cord	1 set
AC Adaptor	1 set
