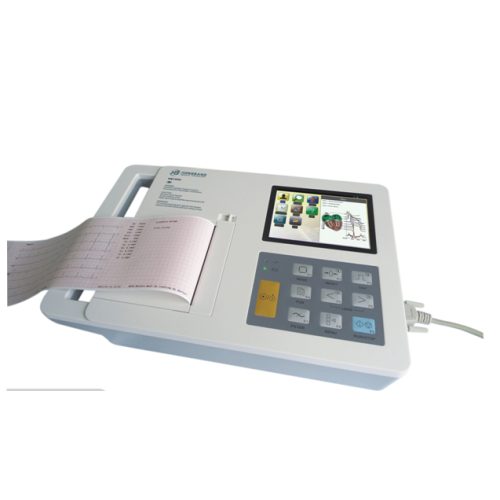

5.7inch 6 Channel ECG Electrocardiograph Machine
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai Port, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China |
|---|---|
| Productivity: | 2000pcs/Month |
| Supply Ability: | 2000 Piece/Month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,Express Delivery |
| Certificate: | CE, ISO |
| HS Code: | 9018110000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai Port,Guangzhou |
Function features:
1. Modern in design, light in weight, compact in size.
2. Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
3. 2'' color touch-screen, both push-button and touch operation.
4. Sensitive filters of ADS, HUM, and EMG.
5. Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
6. Automatic adjustment of baseline for optimal recording.
7. Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer and thermal-8. Built-in rechargeable li-ion battery (14.8V/4400mAh), AC/DC power conversion.
9. Historical data and patient’s information can be reviewed and printed.
10. Support USB flash disk & memory card, stored reports can be saved, opened, analyzed in PC via ECG playback software.
11. The machine can store over 500 ECG reports in its built-in flash.
12. Standard RS232 and USB communication interfaces.
13. Connect with PC via ECG workstation software.
14. The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
15. Portable design with hidden handle, convenient to carry.
16. 7 level printing thick can be chosen.
Standard Parameter:
|
CMRR
|
≥ 100dB, with AC Filter
|
|
Input circuit
|
Floating
|
|
Input circuit current
|
≤ 0.1µ A
|
|
Resolution
|
12bit/1000Hz
|
|
Operation mode
|
Manual/Auto
|
|
Filter
|
AC. EMG Filter
|
|
Drift filter
|
Anti-Drift System
|
|
Input Impedance
|
> 50MΩ
|
|
Patient current leakage
|
< 10µ A
|
|
Specification of fuse
|
T1.6A 250V Ø5×20
|
|
Recording paper
|
Thermal recording paper
|
|
Calibrating voltage
|
1mV± 3%
|
|
Voltage tolerance
|
± 500mV
|
|
Time constant
|
> 3.2s
|
|
Frequent response
|
0.05Hz~150Hz
|
|
Noise level
|
≤ 15µ Vp-p
|
|
Threshold
|
≤ 20µ V
|
|
Paper speed
|
12.5, 25, 50mm/s (± 3%)
|
|
Sensitivity
|
5, 10, 20mm/mV
|
|
Recorder
|
High resolution thermal printer
|
|
Battery
|
Built-in rechargeable Li-ion battery 11.1V(4000mAh)
|
|
Package
|
360mm*250mm*68mm
|
