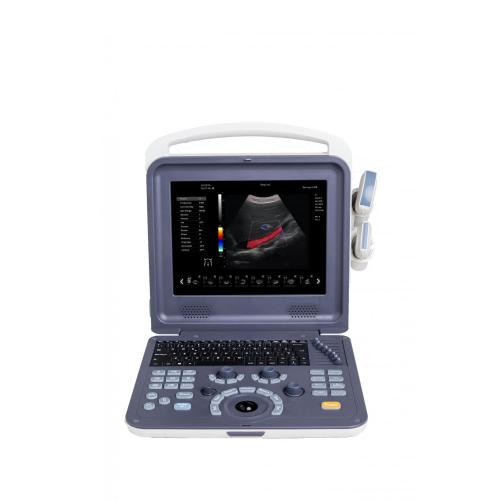

Portable 4D Cardiac Color Doppler Ultrasound Scanner
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China |
|---|---|
| Productivity: | 500PCS/year |
| Supply Ability: | 500 Piece/year |
| Payment Type: | L/C,T/T,Ali Trade Platform |
| Incoterm: | FOB,CFR,CIF,EXW,Express Delivery |
| Certificate: | ISO, CE |
| HS Code: | 9018121000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai Port |
Doppler 4D Ultrasonography Machine
Technical features:
1. High resolution medical LED monitor, 12 inch monitor；
2. With larger ultrasound interface, The resolution is less than 0.5mm;
3. Light weigh design, the net weight is 6.5KG, easy to take；
4. Built-in floating standard keyboard and backlit keyboard design；
5. Based on PC platform, have abundant peripheral, can upgrade the system according to the customer requirement and be compatible with a various of printers;
6. The abundant periperals；2 USB ports, 2 Internet interface, RS232 interface, VGA output interface, DVI interface;
7. Multi-language software for choose (Chinese, English, Spanish, Russian, Persian and French);
8. Friendly user’s operation interface;
9. Crystal clear 2D image and sensitive Color Doppler blood flow imaging system ;
10. Having B,2B,4B, B+CF, B+CF+PW, B+CW，4D modes and so on;
11. Built-in large capacity rechargeable Li-ion battery, standby time is up to 2 hours;
12. Built-in SSD (Solid State Disc) improves the stability and reading speed;
13. 128 elements, Can be matched with several kinds of probes (such as convex probe, linear probe, transvaginal probe, phased array probe，micro-convex probe…)；
14. Can be updated to 4D (option).
Parameters for Full Digital Portable 4D Color Doppler:
1. Smart design
The familiar PC system makes the system intuitive and easy to use. Flexible design allows system to be used conveniently.
2. Probes information
Configuration
Probes
5 Steps Multi-frequency
Standard:
3.5Mhz abdominal probe
2.0, 3.0, 3.5, 4.0, 5.5Mhz
7.5Mhz linear probe
6.0, 6.5, 7.5, 10.0, 12.0Mhz
Options:
6.5Mhz transvaginal probe
5.0, 6.0, 6.5, 7.5, 9.0Mhz
3. Technical specifications
Displaying mode
B,B/B,4B,B/M,M, B/C,B/C/D,B/D, duplex, triplex, CFM, PW,CW,4D
Signal processing:
Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
Image processing:
THI
PSHI TM broadband multi-frequency harmonic image
Power adjustable
Smoothing function
Edge enhancement
One-key optimization
Image conversion
Wall filter adjustable
Base line adjustable
PRF adjustable
AIO-Auto image optimization
IZoom: Instant full screen image
I-Image: intelligent optimization
Storage: Direct date transfere to U disk or PC
MBF: Multi Beam Former
SA: Synthetic Aperture Ultrasonic imaging
Iclear: Speckle Noise Reduction
CDF: Contunuous Dynamic Focusing
Composite gain technology: 8-segment TGC and D-AGC
Focus: Launch focus area is full screen, digital dynamics are full receive focus
Continuous Wave Doppler
Trapezoid Image (Option)
Real time 4D imaging (Option)
General measurement
B mode-distance, circumference, area, volume, angle, area Red, Diam Red
M mode- distance, time, velocity, heart rate
Abdomen
measurement
Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen
OB packages
EDD table :GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD, Cxlength.
Gynecological packages
Uterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement; Cervix; Uterine depth
Urology packages
Left/right kidney measurement, Volume, Cortex
Small parts Measurement
Left/ right thyroid, volume, Isthnus and calculating report
Cardiac Measurement Package
Heart rate, Valve speed, LV, aortic, mitral, ventricular
Skeletal & Muscles
Skeletal & Muscles, distance, area, Hip angle
Vascular
Senosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA
4D Measurement
Early Obstetric: Lt Ovary, Rt Ovary, Uterus…
Later Obstetric: Fetal Biometry, Long Bones, AFI…
Scanning depth
≥260mm
Gray
256
Probe elements
128
Body mark
Abdominal ,Cardiology, Gynecology, Obstetrics, Small parts
Cine loop
Automatically & manually
Image storage format
BMP, JPEG, PNG,DCM
Input/output ports
COM、USB、DICOM；/ VGA、DVI、USB、COM、DICOM；
Standard Configuration
Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, 2 probe connectors, User’s Manual, hard disk (SSD)，built-in li-ion battery
Options
6.5Mhz transvaginal probe, 3.5Mhz micro-convex probe, 3.5Mhz phased array probe, 4D volume probe, trolley, USB laser printer and Video printer, biopsy kit，aluminum case
