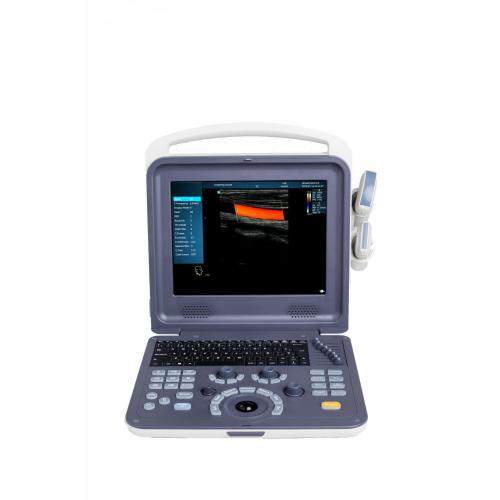

Multi-Function medical tablet portable ultrasound machine
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China |
|---|---|
| Productivity: | 500PCS/year |
| Supply Ability: | 500 Piece/year |
| Payment Type: | L/C,T/T,Ali Trade Platform |
| Incoterm: | FOB,CFR,CIF,EXW,Express Delivery |
| Certificate: | ISO, CE |
| HS Code: | 9018121000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai Port |
Technical features:
1. High resolution medical LED monitor, 12 inch；
2. Light-weight design, net-weight 6KG;
3. Built-in Li-battery, stand up 2-3 hours;
4. Two probe connected ports, could match with 3 kind of probes, convex probe, linear probe and transvaginal probe.
5. Built-in floating standard keyboard and backlit keyboard design;
6. One-Key optimism function;
7. Based on Linux platform, more stable;
8. Three languages Chinese, English and French to choose, satisfy the requirement of the most people all over the world.
9. Crystal clear 2D image and sensitive Color Doppler blood flow imaging system;
10. The peripherals: Ethernet interface, 2 USB Ports, VGA interface, S-video interface, Remote interface, Video interface;
1. Smart design
l High Resolution Imaging System
l Easy-operation Ergonomic Design
l Better Optimize Image Quality
l Smart and Light -Weight Design
2. Probes information
|
Probes |
5 Steps Multi-frequency |
Image |
|
3.5Mhz abdominal probe |
2.0, 3.0, 3.5, 4.0, 5.5Mhz |
|
|
7.5Mhz linear probe
|
6.0, 6.5, 7.5, 10.0, 12.0Mhz
|
|
6.5Mhz transvaginal probe
5.0, 6.0, 6.5, 7.5, 9.0Mhz
3. Technical specifications
|
Displaying mode |
B,B/B,4B,B/M,M, B/C,B/C/D,B/D, duplex, triplex, CFM, PW |
|
Signal processing: |
Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields |
|
Image processing: |
THI Storage: 16G Power adjustable Smoothing function Edge enhancement One-key optimization Image conversion Wall filter adjustable Base line adjustable PRF adjustable AIO-Auto image optimization IZoom: Instant full screen image I-Image: intelligent optimization MBF: Multi Beam Former SA: Synthetic Aperture Ultrasonic imaging Iclear: Speckle Noise Reduction CDF: Contunuous Dynamic Focusing |
|
General measurement |
Normal, MSK, ABD, OB, Pelvic,Urology, Cardiac, Small Parts, Vascular |
|
Normal measurement |
Volume, V3L, STD_S, Area Trace,Mtime, MHR, D Time, DV, D Common, D Auto, Area, Angle, CrossLine, STD D, ParalleLine, Mdist,MV, D HR, DA, D Trace |
|
ABD packages |
ABD, Aorta, R_Kidney & L_Kidney, Bladder, Prostate |
|
OB Packages |
Early_OB, Rt-Ovary, Lt-Ovary, Uterus, Fetal_Biome, Long_Bones, AFI |
|
Pelvic Packages |
Uterus, Rt/Lt - Ovary, Rt/Lt-Follicle,
|
|
Urology packages |
Rt/Lt- kidney measurement, Bladder, Prostate,Rt/Lt_Testicle
|
|
Small Parts |
Rt/Lt_Thyroid, Rt/Lt_Testicle, Vessel, Breast |
|
Vascular |
Stenosis D, senosis A, Intima, Arterial, Venous |
|
MSK |
Distance, Area, Hip_Angle |
|
Scanning depth |
≥250mm |
|
Probe elements |
80 |
|
Cine loop |
Automatically & manually |
|
Languages |
China, English, Spanish, French, Russian |
|
Image storage format |
BMP, JPEG, PNG, DICOM(Option)
|
|
Image storage format |
BMP, JPEG, PNG, DICOM(Option)
|
|
Input/output ports |
Video Port, S-Video Port, Remote Port, LAN1/2 Port, VGA |
|
Standard Configuration |
Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, 2 Probe sockets, User’s Manual, hard disk (SSD) |
|
Options |
6.5Mhz Transvaginal Probe, Trolley, Printers, Biopsy kit，Aluminum case |
|
Applicable Printers |
EPSON-L130-Series HP-LaserJet-1020 HP-LaserJet-P2035 SONY UP-D897 SONY UP-D898MD SONY UP-X898MD |
