Reuse of Reclaimed Water for Sewage Treatment Equipment

Product Description

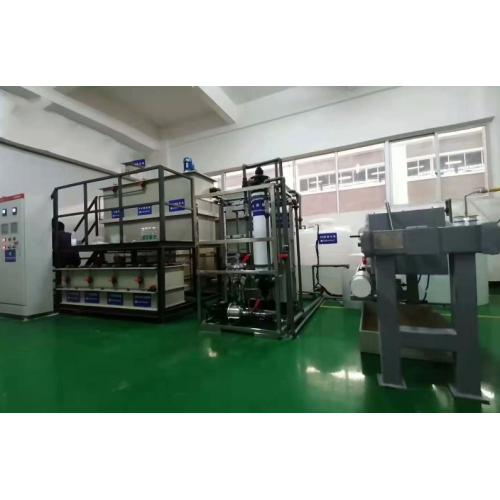

Brief introduction of reclaimed water reuse equipment
Reclaimed water treatment equipment is a water treatment system composed of pretreatment, dosing system, ultrafiltration, reverse osmosis or nanofiltration. The water quality of wastewater itself is more complicated, so certain pretreatment is necessary to enter the ultrafiltration system. Filtration device and reverse osmosis or nanofiltration device,
Ultrafiltration equipment is characterized by thorough removal of bacteria, rust, and colloids in the water, long service life, automatic cleaning, not easy to be dirty and blocked, low cost and low maintenance. The ultrafiltration water enters reverse osmosis or nanofiltration for deep desalination, which can not only improve the desalination rate , It can also increase the service life of reverse osmosis or nanofiltration, extend the chemical cleaning cycle of the membrane, and reduce operating costs.
Process flow of water reuse
Raw water→wastewater lift pump→wastewater pool→booster pump→flocculation dosing system→quartz sand filter→activated carbon filter→reductant dosing device→security filter→UF ultrafiltration water treatment device→ultrafiltration water tank→resistance Scale dosing device → precision filter → high pressure pump → reverse osmosis system → water tank → water supply pump → water point
Advantages of reclaimed water reuse equipment
·Recycle 15%-95% of water in circuit boards and electroplating plants.
·The water quality is stable at 100~1500us/cm.
·It has good economic benefits, and the cost can be recovered within 1-3 years.
·The recovered water can be supplied to the pure water system or directly reused in the production line.
·Fully automatic connection or suitable for reclaimed water recovery without liquid connection.
·Long life and low maintenance cost.
