Pharmaceutical Primary Purified Water Treatment Equipment
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land
- Port:
- Shanghaigang
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China Jiangsu |
|---|---|
| Productivity: | 200 sets |
| Supply Ability: | Annual output of 200 sets of water treatment equipment or even more |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF |
| Certificate: | AAA certification |
| Transportation: | Ocean,Land |
| Port: | Shanghaigang |
Product Description
Product Description
Product Description

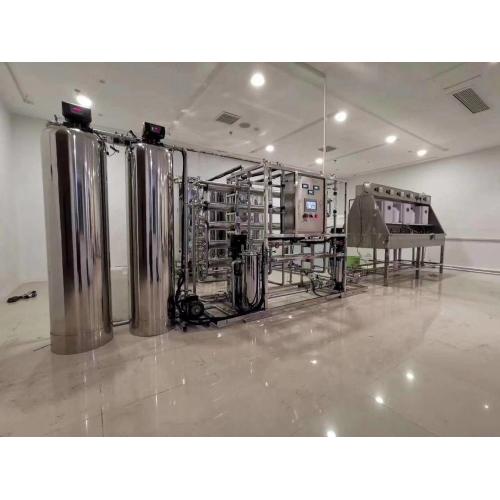

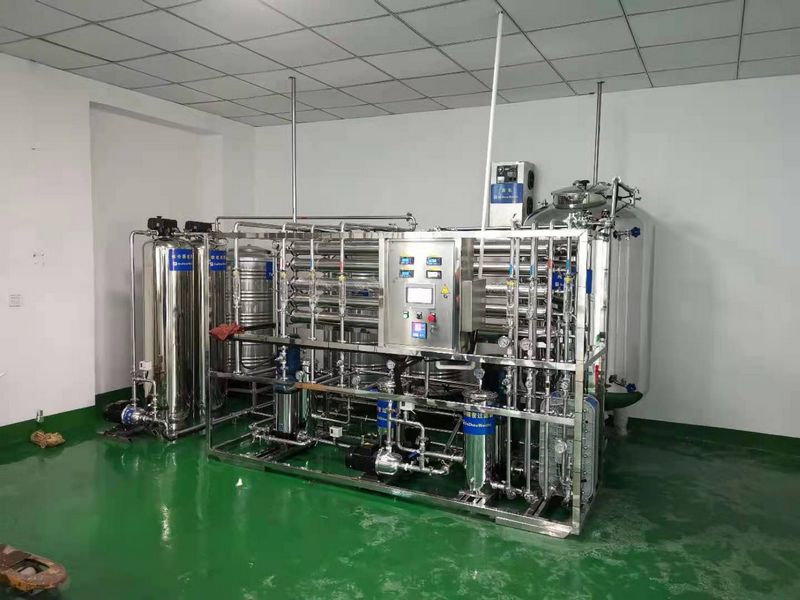

Pharmaceutical purified water equipment is used to meet the needs of various industries to produce purified water. It is mostly used in medicine, biochemical and chemical industries, hospitals and other industries. The entire system is composed of SUS304L or SUS316L all stainless steel materials, and it is used before the water point. Must be equipped with ultraviolet and ozone sterilization devices.
The core technology of the purified water equipment adopts the latest technologies such as reverse osmosis and EDI, and a complete set of high-purity water treatment technology is designed in a targeted manner to meet the water requirements for the production of purified water and the production of large infusions in pharmaceutical factories and hospitals.
1. Preparation process of purified water for biomedicine:
Process (1): Raw water-raw water pressurized pump-multi-media filter-activated carbon filter-water softener-precision filter-one-stage reverse osmosis machine-intermediate water tank-intermediate water pump-EDI system-purified water tank-pure water pump-ultraviolet Sterilizer-microporous filter-water point
Raw water-raw water pressure pump-multi-media filter-activated carbon filter-water softener-precision filter-first stage reverse osmosis-PH adjustment-intermediate water tank-second stage reverse osmosis (the surface of the reverse osmosis membrane is positively charged)- Purified water tank-pure water pump-ultraviolet sterilizer-microporous filter-water point
Process (2): Raw water—multimedia filter—activated carbon filter—salt tank—softening filter—softening water tank—medicine washing water tank—security filter—first-level reverse osmosis device—second-level reverse osmosis device—RO pure water tank —EDI ultra-pure water device—ultra-pure water tank—distilled water device—water point
The core technology of the purified water equipment adopts the latest technologies such as reverse osmosis and EDI, and a complete set of high-purity water treatment technology is designed in a targeted manner to meet the water requirements for the production of purified water and the production of large infusions in pharmaceutical factories and hospitals.
1. Preparation process of purified water for biomedicine:
Process (1): Raw water-raw water pressurized pump-multi-media filter-activated carbon filter-water softener-precision filter-one-stage reverse osmosis machine-intermediate water tank-intermediate water pump-EDI system-purified water tank-pure water pump-ultraviolet Sterilizer-microporous filter-water point
Raw water-raw water pressure pump-multi-media filter-activated carbon filter-water softener-precision filter-first stage reverse osmosis-PH adjustment-intermediate water tank-second stage reverse osmosis (the surface of the reverse osmosis membrane is positively charged)- Purified water tank-pure water pump-ultraviolet sterilizer-microporous filter-water point
Process (2): Raw water—multimedia filter—activated carbon filter—salt tank—softening filter—softening water tank—medicine washing water tank—security filter—first-level reverse osmosis device—second-level reverse osmosis device—RO pure water tank —EDI ultra-pure water device—ultra-pure water tank—distilled water device—water point
