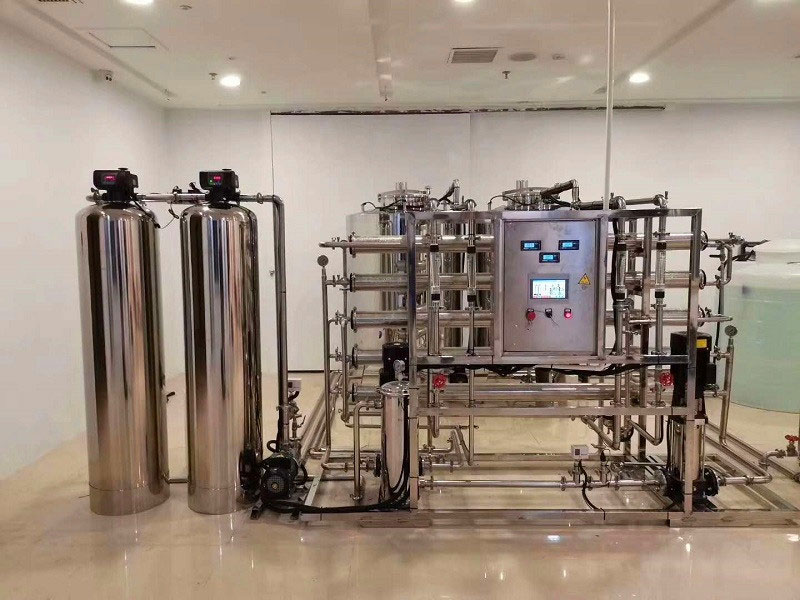

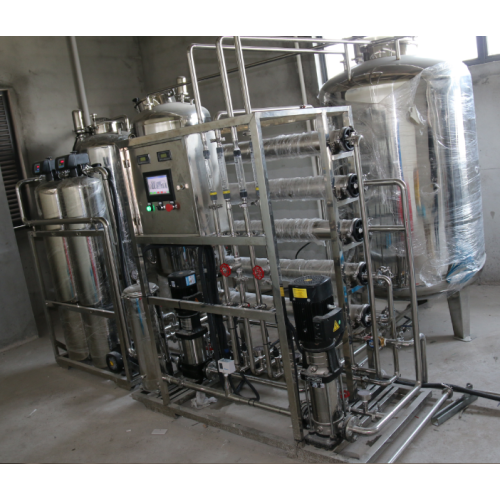

Biopharmaceutical Purified Water Equipment

Product Description

The core technology of purified water equipment adopts the latest technology such as single-stage or double-stage reverse osmosis, EDI, etc., and has designed a complete set of high-quality pure water treatment processes to meet the requirements of purified water or distilled water for diagnostic reagents in pharmaceutical factories, hospitals and laboratories. The whole system is made of SUS304L or SUS316L all stainless steel, and it must be equipped with ultraviolet and ozone sterilization devices before the water point, and pasteurization can also be used.
Biopharmaceutical purified water system:
 Purified water used in the pharmaceutical industry is also called deionized water (or desalinated water), usually refers to a process that uses reverse osmosis, EDI, etc., and uses urban tap water or surface water as raw water without any additives. Use water. The country has very strict water requirements for the pharmaceutical industry, so the water produced by purified water equipment used in the pharmaceutical industry needs to comply with the "Chinese Pharmacopoeia" (2015 edition), including equipment process design, system manufacturing, installation, on-site installation, system trial installation and adjustment, and equipment Warranty, and after-sales service, etc.
technological design:
1. The purified water system adopts fully automatic control, with high stability and simple and convenient operation;
2. Using bipolar reverse osmosis technology, the desalination rate is high, the effluent quality is stable, the performance is reliable, and the stable operation of the system is ensured to the greatest extent.
3. It adopts PLC combined with man-machine interface for fully automatic control, touch screen one-key start, simple and convenient operation, clear picture, exquisite and beautiful.
4. Equipped with water quality correction function, with the lowest water quality warning function, there will never be an emergency.
5. Equipped with a purified water delivery and water supply system, and separate the water production system from the water supply system. In case of replacement of consumables, there is no need to stop the water supply or water production.
6. The RO water production and flushing time can be set. When the water consumption peaks, the water production time can be adjusted, and the water point can be used to stabilize water.
7. The pretreatment system, water production system and water use system in the purified water system are respectively equipped with circulating water channels, and the water quality sections at all levels set the function of discharging qualified water and unqualified water to the previous section to ensure stable and safe water quality.
Common process flow:
(1) Pretreatment + primary reverse osmosis + secondary reverse osmosis
(2) Pretreatment + primary reverse osmosis + EDI equipment
(3) Pretreatment + primary reverse osmosis + secondary reverse osmosis + EDI equipment

Suzhou Weizhi Water Treatment Equipment Co., Ltd. was established in 2008. The company has more than ten years of water treatment technology. It is a professional water treatment equipment company in Suzhou. By the end of 2019, water treatment technology has successfully implemented more than 1500 projects at home and abroad, with equipment treatment capacity of more than 60000 tons / day, and has solved water problems for more than 1500 customers, Industries involved: environmental protection, chemical industry, machinery, medicine, electronics, food, community water and other equipment; The company's existing production equipment: wastewater treatment equipment, reclaimed water reuse equipment, ultra pure water equipment, pure water equipment, evaporation equipment, etc; R & D projects: treatment of waste leachate, seawater desalination, application and development of energy recovery device, remote data acquisition of sewage treatment equipment and guidance tips for on-site practical application. Patents: at present, the company has 3 invention patents, 12 practical patents and 13 software patents. In addition, the company provides customers with fast and high-quality services with complete production and manufacturing plants, perfect design, excellent construction quality and perfect after-sales service quality. With the successful practice of thousands of projects, the company has extremely rich experience in design, implementation and operation.
