Medical Purified Water Treatment

Product Description

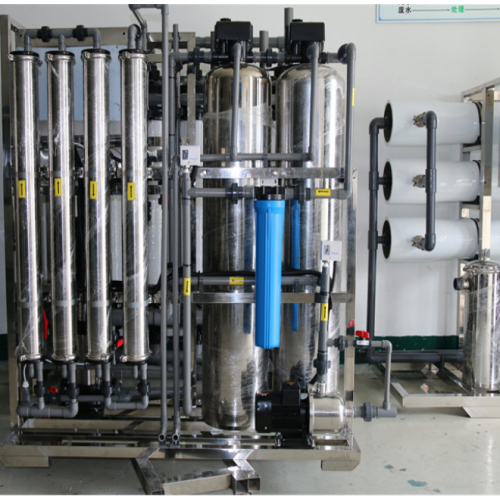

 Medical Purified Water Equipment is mainly used in production water for biological preparations, pharmaceutical preparations, medical infusion, osmosis, etc. In the medical and pharmaceutical industry, water is one of the indispensable raw materials, and it also directly affects the important links of product quality. In recent years, the pharmaceutical industry's standard requirements for purified water have also been continuously improved, resulting in the importance of Chemical Fiber Pure Water Equipment has also attracted much attention. This article describes the process flow of Pure Water Equipment and the main process flow of First-level Reverse Osmosis Pure Water Equipment
The technological process of Industrial Ultrapure Water Equipment as follow:

1. Pretreatment system → reverse osmosis system → intermediate water tank → coarse mixed bed → fine mixed bed → pure water tank → pure water pump → ultraviolet sterilizer → polished mixed bed → precision filter → water object (≥18MΩ.CM) (traditional Craft).
2. Pretreatment → reverse osmosis → intermediate water tank → water pump → EDI device → purified water tank → pure water pump → ultraviolet sterilizer → polished mixed bed → 0.2 or 0.5 μm precision filter → water object (≥18MΩ.CM) (the latest technology) .
3. Pretreatment→first-stage reverse osmosis→dosing machine (PH adjustment)→intermediate water tank→second-stage reverse osmosis (positive charge reverse osmosis membrane)→pure water tank→pure water pump→EDI device→ultraviolet sterilizer→0.2 or 0.5μm precision filter → water object (≥17MΩ.CM) (the latest technology).
The detailed process flow of pure water equipment and purified water equipment!
4. Pretreatment → reverse osmosis → intermediate water tank → water pump → EDI device → pure water tank → pure water pump → ultraviolet sterilizer → 0.2 or 0.5 μm precision filter → water object (≥15MΩ.CM) (the latest technology).
5. Pretreatment system → reverse osmosis system → intermediate water tank → pure water pump → coarse mixed bed → fine mixed bed → ultraviolet sterilizer → precision filter → water object (≥15MΩ.CM) (traditional process).

The technological process of Water treatment equipment is:
1. Adopt ion exchange method
Raw water → raw water pressure pump → multi-media filter → activated carbon filter → water softener → precision filter → cation resin filter bed → anion resin filter bed → anion and yang resin mixed bed → microporous filter → water point
2. Adopt two-stage reverse osmosis method
Raw water → raw water pressure pump → multi-media filter → activated carbon filter → water softener → precision filter → first-stage reverse osmosis → PH adjustment → intermediate water tank → second-stage reverse osmosis (the surface of the reverse osmosis membrane is positively charged) → Purified water tank → pure water pump → microporous filter → water point
3. Adopt EDI method
Raw water → raw water pressure pump → multi-media filter → activated carbon filter → water softener → precision filter → primary reverse osmosis machine → intermediate water tank → intermediate water pump → EDI system → microporous filter → water point

WEZHI Circulating water equipment works effieciently as usually.
