Pure water treatment equipment for the medical industry
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land
- Port:
- shanghaigang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China Jiangsu |
|---|---|
| Productivity: | 200 sets |
| Supply Ability: | Annual output of 200 sets of water treatment equipment or even more |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF |
| Certificate: | AAA certification |
| Transportation: | Ocean,Land |
| Port: | shanghaigang |
Product Description

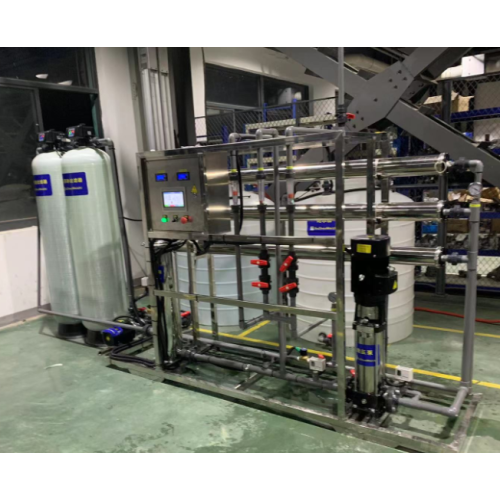

Water treatment equipment For The Medical Industry
The state stipulates that the purified water standards of the pharmaceutical industry refer to the water quality standards in the "2010 Chinese Pharmacopoeia", requiring Industrial Pure Water Equipment materials, pipes, and water tanks to be made of 304 stainless steel, with a conductivity of less than 2 conductivity and a resistivity of more than 0.5 trillion. According to national standards, our company designs water treatment equipment for the pharmaceutical industry. Medical Pure Water Equipment process is as follows:
Raw water tank + raw water pump + quartz sand filter + activated carbon filter + precision filter + primary booster pump + primary reverse osmosis equipment + intermediate water tank (equipped with PH adjustment device) + secondary booster pump + secondary reactor Infiltration equipment + pure water tank (ozone disinfection) + delivery pump + ultraviolet disinfection + 0.22 micron precision filtration + point of use
1. The system adopts fully automatic control (manual control can also be used), and automatic backwashing and direct washing functions can be set during operation.
2. Both the first-stage reverse osmosis and the second-stage reverse osmosis are equipped with return pipelines, and backwashing is performed at a set time to increase the service life of the membrane.
3. There is a PH adjustment device between the first-level reverse osmosis and the second-level reverse osmosis to ensure that the effluent meets the pharmacopoeia and GMP certification water standards.
4. The whole set of Chemical Pure Water Equipment is equipped with three conductivity meters, the conductivity of the raw water, the intermediate conductivity of the first-level reverse osmosis, and the second-level reverse osmosis effluent conductivity meter to constantly monitor the water quality.
5. The equipment system adopts PLC control, and the program can be input on the PLC, and the program of the whole set of equipment can be input, reducing the number of wiring, making the system more stable, the program can be edited, and the maintenance is easy.
6. The equipment is equipped with a touch screen, the process of the whole equipment can be displayed, and the operation of the whole equipment can be monitored from time to time.
7. Before reverse osmosis, it is equipped with high pressure and low pressure protection to improve the service life of the equipment.
8. The purified water tank is equipped with a breathing filter, and the conveying pipeline is equipped with an ultraviolet sterilizer and a microporous filter to ensure that the pure water meets sanitary standards.
Features
The produced water complies with the 2005 edition of the Pharmacopoeia purified water standard and can meet the GMP standard.
1. The structure design is simple, reliable, and easy to disassemble and assemble. The design of the actuator adopts standardized, generalized, and systematic components as far as possible.
2. The entire system of ultrapure water equipment is also made of all stainless steel materials, smooth and flat, no dead corners, easy to clean and sterilize, and corrosion-resistant to prevent rust.
3. Directly use tap water to make sterile ultrapure water, which can completely replace distilled water and double distilled water.
4. Imported pumps, reverse osmosis membranes and other high-quality components are used.
5. Fully automatic operating system, efficient automatic flushing
6. Imported instruments can be used to accurately, continuously analyze and display the water quality.
7. Used in the purification of pure water for the pharmaceutical industry, large medical infusion preparations and sterile medical water.
