Weizhi High Technology Wastewater Evaporator

Product Description

Sewage Treatment Equipment

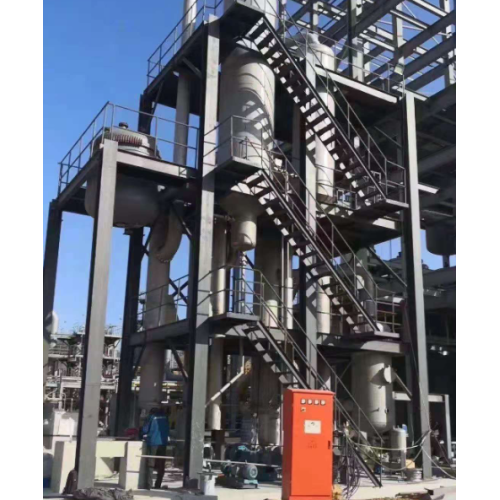

The ,Wastewater Treatment Machine evaporative concentration adopts two-stage MVR evaporative concentration form:
The Water Evaporator Machine technology of first concentration and then crystallization uses the falling film evaporator to evaporate and concentrate the mixed salt solution to about 20%, and then enter the forced circulation evaporator to evaporate the concentration of the material to a supersaturated state. The falling film evaporator is a better evaporator form for the initial concentration of the material. When the material enters the upper part of the falling film evaporator, the material is evaporated in a film form in the heat exchange tube through the guide tube, which has high evaporation efficiency and evaporation intensity. Also Wastewater Evaporator is big.

The secondary evaporator adopts a forced circulation evaporator. The forced circulation evaporation process is suitable for the evaporation of the inorganic salt aqueous solution produced by crystals, which can effectively prevent the occurrence of pipe blockage. It can save more energy consumption. The first stage of the system adopts the falling film evaporation process, and the material evaporates in the form of a film in the heat exchange tube, the heat exchange efficiency is higher, and the power of the circulating pump will be smaller. It can effectively prevent pipe blockage. The system adopts a forced circulation evaporation process at the second stage. The flow rate of the material in the heat exchange tube reaches 1.5~2m/s, and the pipe blockage phenomenon is not easy to occur at this flow rate.
The stable operation of the system is relatively high. If an evaporation device wants to operate stably, it is inseparable from a good process. The matching between the equipment and the selection of reasonable control points can ensure the stable operation of the equipment. Our company's evaporation in the MVR The design of the equipment and the selection of control points in the entire process have unique design concepts and experience, so the stable operation of the equipment can be guaranteed.

Suzhou Weizhi Water Treatment Equipment Co., Ltd. was established in 2008. The company has more than ten years of water treatment technology. It is a professional water treatment equipment company in Suzhou. By the end of 2019, water treatment technology has successfully implemented more than 1500 projects at home and abroad, with equipment treatment capacity of more than 60000 tons / day, and has solved water problems for more than 1500 customers, Industries involved: environmental protection, chemical industry, machinery, medicine, electronics, food, community water and other equipment; The company's existing production equipment: wastewater treatment equipment, reclaimed water reuse equipment, ultra pure water equipment, pure water equipment, evaporation equipment, etc; R & D projects: treatment of waste leachate, seawater desalination, application and development of energy recovery device, remote data acquisition of sewage treatment equipment and guidance tips for on-site practical application. Patents: at present, the company has 3 invention patents, 12 practical patents and 13 software patents. In addition, the company provides customers with fast and high-quality services with complete production and manufacturing plants, perfect design, excellent construction quality and perfect after-sales service quality. With the successful practice of thousands of projects, the company has extremely rich experience in design, implementation and operation.
