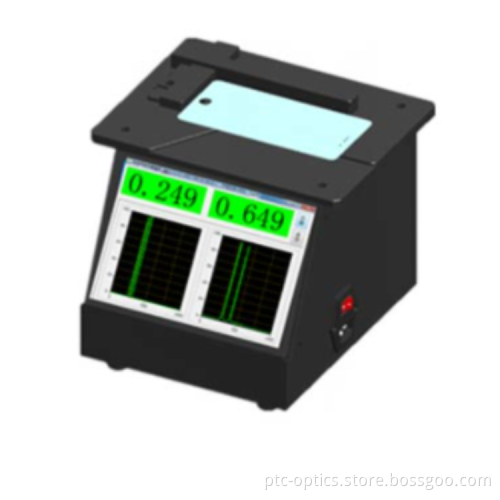

Portable Glass Thickness Gauge

This thickness gauge is a new type of non-contact measuring equipment, which uses laser triangulation method ( a kind of photoelectric technology) to precisely measure distances.

Equipped with a touch screen which is able to reduce manual measurement error and is more convenient to manage the measuring data .

Measuring objects
Flat glass

Function
Measure the thickness of flat glass precisely

Application

Other inspections:

(Cellphone glass panel , LCD panel , touch panel and many other flat glass products)

Measuring range (thickness): 0.2～2.0mm

Measurement accuracy: 0.001mm

Measuring object: transparent flat glass

Detectable min size : flat glass 30*10mm or above

Light source: specific semiconductor laser

Analysis software: specific thickness measurement

Power supply: AC220V 3A

Size (measuring head): 250×250×215mm

Weight (measuring head): about 5KG
