Industry Camera
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB |
| Port: | SHANGHAI |

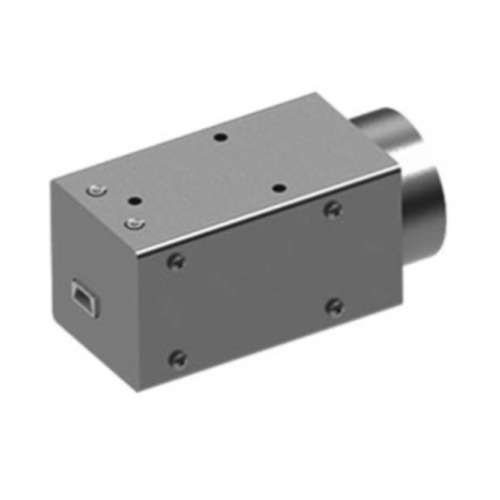

This Industry Camera adopts CMOS photo-sensitive chip, which is lightweight and compact ( only 30mmx 30mm x 45mm, with a weight of 70g ). It is a high stability and cost-effective industrial digital camera, which is able to operate steadily in all kinds of hostile environments .
Features
1. Standard USB 2.0 interface
2. Output multiple formats of image data
3. Provide hardware encryption function
4. Substantial full-metal shell and locked cable device
5. Support hot plug
6. The drive supports 32 bit / 64 bit Windows optimization
7. Free SDK and rick secondary development of source code examples
Application area
Suitable for office automation ,scientific research, medical treatment, education, national defense, public security and industrial testing field .
Specifications
|
Sensor |
CMOS |
|
Shutters |
rolling shutter ( ERS), 10μs-1.6s |
|
Resolution ratio |
1280*1024 |
|
Frame rate |
30fps |
|
Interface |
USB 2.0 |
|
Colour |
Black and white |
|
Picture element |
5.2*5.2 |
|
Pixel |
1.3M |
|
Dynamic range |
68.2dB |
|
Picture formats |
Black and white Mono 8/10p |
|
Gain |
0dB-24dB |
|
Power supply mode |
Standard USB 2.0 interface |
|
Size |
30mmx30mmx45mm(without lens mount ) |
|
Weight |
70g |
