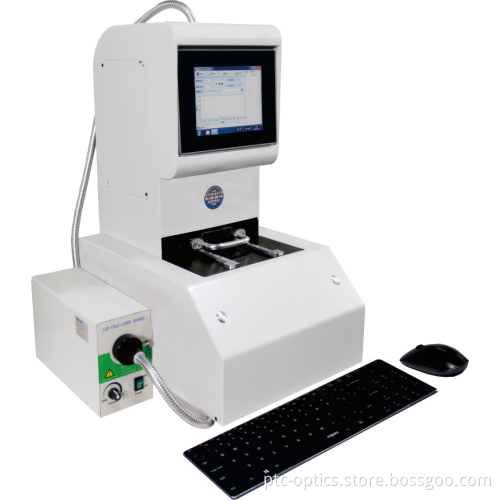

Polarizing film Optical Absorption Axis Measuring instrument (Ref : OI-OAM )
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T |
|---|---|
| Incoterm: | FOB |
| Port: | SHANGHAI |
Equipment function
This measuring instrument is designed for detecting the absorption axis angle of polarizing film. It supports both single measurement and multiple continuous measurement .
Features
1. Measuring results display in real time ;
available data management : data autosave, data query , data analysis , data report export ;
2. Adopt extremely high-resolution imported motor , which ensures the measurement accuracy ;
3. The sample carrier is automatically positioned during measurement. No additional human operation is needed . Thus guarantee high repeat accuracy ;
4. Operators manually place the polarizing film;
Application area
Optical film
Specification
|
Model NO |
OI-OAM |
|
Whole size |
424mm（length）*304mm（width）*558mm（height） |
|
Measuring angle range |
0°- 180° |
|
Measuring |
15s/pcs |
|
Detecting Accuracy |
±0.05° |
|
Power supply |
AC220 V 50Hz |
|
Display |
Tablet |
|
Loading method |
Manually place Optical film |
|
Sample Positioning method |
Automatic positioning（magnets ） |
|
Data output |
USB kit |
