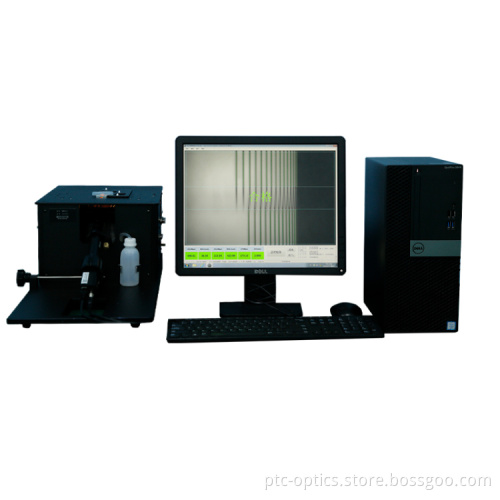

Surface Stress Meter for Tempered Glass (REF. ASM-200-FAP)

The surface stress meter ( Ref. ASM-200-FAP）measures surface stress of tempered glass and the depth of the stress layer according to photoelastic technology by letting light spread along the glass surface. This machine is equipped with a PC, which can reduce measurement errors caused by the operators . Moreover, it is more convenient for the management of testing data. Thickness Gauge is optional to improve the measurement efficiency.

Features

①　advanced non-destructive testing method : Photoelastic analysis Refractormeter

②　determination of qualified or unqualified (OK/NG ) according to operators’ setting( in continuous testing mode )

③　quantity accumulation of OK and NG samples automatically

④　offer master piece to achieve self-calibration at any time

⑤　automated testing to ensure detecting accuracy and stability

⑥　Data saved by PC to facilitate data analysis, providing guide for quality control

⑦　Optional single testing mode to save testing time

⑧　Recommended manual testing mode when samples are not in good tempered condition

⑨　Led Lamp with 10,000 hours serving time

⑩　automatic dripping device and automatic suction device controlled by specific software has been integrated into the body to save installation space

Specifications
