AH-35A-02/03 First Generation Agriculture Hub
-
$32.002500-4999 Set/Sets
-
$29.005000-9999 Set/Sets
-
$27.00≥10000 Set/Sets
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 100000/year |
| Supply Ability: | 5000 Set/Sets per Month |
| Payment Type: | L/C,D/P |
| Incoterm: | FOB,EXW |
| Certificate: | ISO/TS16949:2009 |
| HS Code: | 84329000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai |
Product Description
Product Description

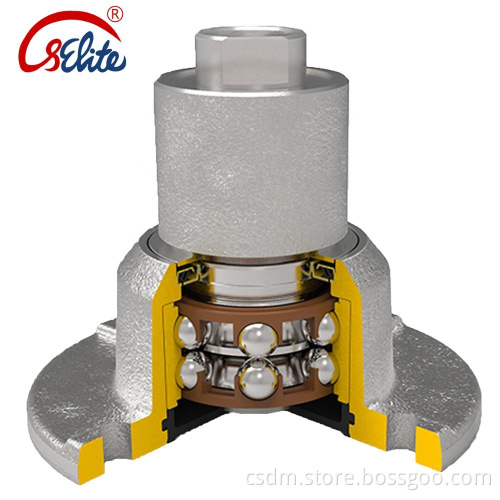

System disc hub
Agricultural machinery manufacturers have different requirements for agricultural hub, and different design concepts produce different requirements for hub products. In soil tillage, no-tillage sowing, precision sowing, the CSELITE tillage system hubs offer a variety of options for different needs. Independent double row angular contact bearings can withstand high-strength loads, different connection methods can meet most installation requirements, and triple-sealed design ensures long-term stable operation of hubs.
Technical parameter
Designation
D
d
B
G
PCD
H
C
OEM No.
－
mm
mm
mm
mm
mm
mm
mm
－
AH-35A-02
150
57
99
M20
120
4-11
31
AH-35A-03
150
64
125
M24x3
120
4-10.8
28
