AH-30F-03 First Generation Agriculture Hub
-
$28.002500-4999 Set/Sets
-
$25.005000-9999 Set/Sets
-
$22.00≥10000 Set/Sets
- Transportation:
- Land, Ocean, Air, Express
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000/year |
| Supply Ability: | 10000 Set/Sets per Month |
| Payment Type: | L/C,D/P |
| Incoterm: | FOB,EXW |
| Certificate: | ISO/TS16949:2009 |
| HS Code: | 84329000 |
| Transportation: | Land,Ocean,Air,Express |
| Port: | Shanghai |

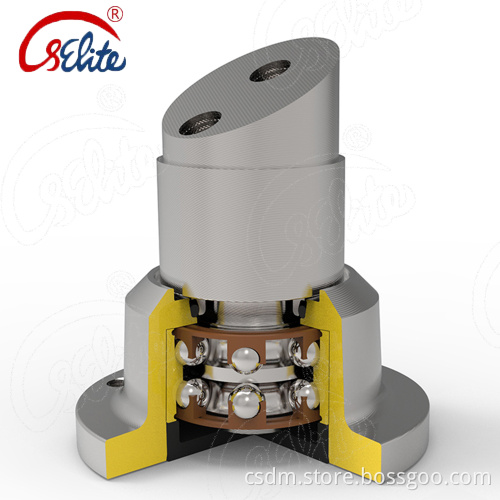

System disc hub
Agricultural machinery manufacturers have different requirements for agricultural hub, and different design concepts produce different requirements for hub products. In soil tillage, no-tillage sowing, precision sowing, the CSELITE tillage system hubs offer a variety of options for different needs. Independent double row angular contact bearings can withstand high-strength loads, different connection methods can meet most installation requirements, and triple-sealed design ensures long-term stable operation of hubs.
Technical parameter
Designation
D
d
B
LG
G
PCD
H
OEM No.
－
mm
mm
mm
mm
mm
mm
mm
－
AH-30F-03
117
59.8
92.5
23
M16
97
3-M12
HORSCH 34189000
