AH-30B Serie Second Generation Agriculture Hub
  • AH-30B Serie Second Generation Agriculture Hub
  • AH-30B Serie Second Generation Agriculture Hub
  • AH-30B Serie Second Generation Agriculture Hub
AH-30B Serie Second Generation Agriculture Hub
AH-30B Serie Second Generation Agriculture Hub
AH-30B Serie Second Generation Agriculture Hub

AH-30B Serie Second Generation Agriculture Hub

  • $22.00
    2500-4999 Set/Sets
  • $20.00
    5000-9999 Set/Sets
  • $18.00
    ≥10000 Set/Sets
Transportation:
Ocean, Land, Air, Express
Port:
Shanghai
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 100000/year
Supply Ability: 25000 Set/Sets per Month
Payment Type: L/C,D/P
Incoterm: FOB,EXW
Certificate: ISO/TS16949:2009
HS Code: 84329000
Transportation: Ocean,Land,Air,Express
Port: Shanghai
Product Description
Product Description

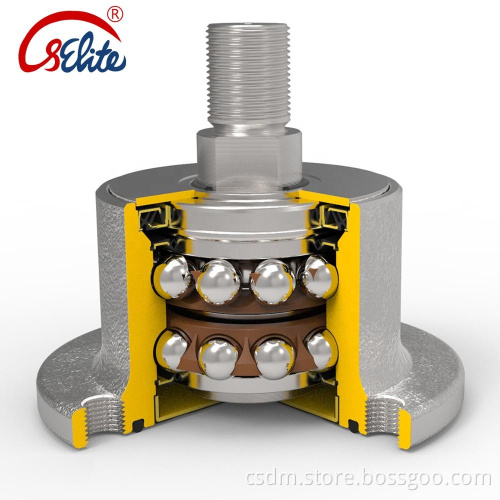

Independent disc hub

Performance version


In agricultural production, more and more farmers are aware of the importance of correct stubble-cleaning. After the stubbl removal, smashing and returning to the field, the organic matter composition in the soil can be increased, the structure of soil aggregates can be rearranged and combined, the soil can be changed from compact type to loose type, the permeability and water permeability can be increased, the drought resistance and water permeability can be improved, and create conditions for seeding. As the main stubble-killing equipment in foreign countries, high speed disc harrow is often impacted by rocks when turning over the soil, which requires the agri hub unit to have a solid outing ring and excellent load capacity.


20190708124651469

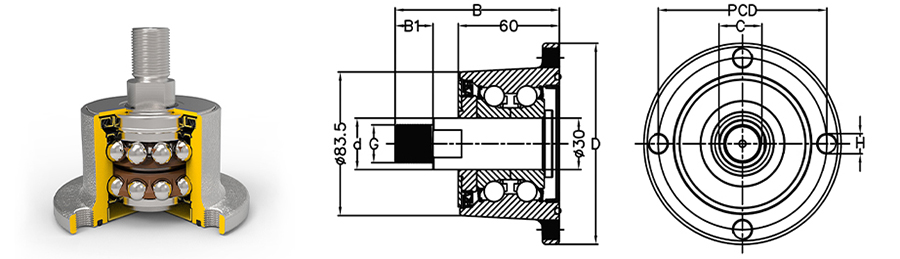

 Technical parameter




20190819025603219

Designation D d B B1 G PCD H C OEM No.
mm mm mm   mm mm mm mm
AH-30B-01 117 - 60 - No shaft 98 4-M12x1.25 - SKF BAA-0003  FKL IL50-98/4T-B30.J
AH-30B-04 117 28 102 25 M22x1.5 98 4-M12x1.25 25.5 SKF BAA-0004/BAA-0023  FKL IL50-98/4T-M22
AH-30B-05 117 28 102 25 M22x1.5 98 5-M12x1.25 25.5 SKF BAA-0012  FKL IL50-98/5T-M22
AH-30B-06 117 28 102 25 M22x1.5 98 6-M12x1.25 25.5 SKF BAA-0006  FKL IL50-98/6T-M22
AH-30B-07 117 30 106 29 M24x2 98 4-M12x1.25 27.5 FKL IL50-98/4T-M24
AH-30B-09 117 30 106 29 M24x2 98 6-M12x1.25 27.5 FKL IL50-98/6T-M24
AH-30B-10 117 30 97.5 22 M24x1.5 100 6-M10x1.25 27 LEMKEN 5554512 FKL IL50-100/6T-M24.R
AH-30B-11 117 30 97.5 22 M24x1.5L 100 6-M10x1.25 27 LEMKEN 5554513 FKL IL50-100/6T-M24.L
AH-30B-12 117 28 106 25 M24x2 98 6-M12x1.25 25.5 SKF BAA-0013
