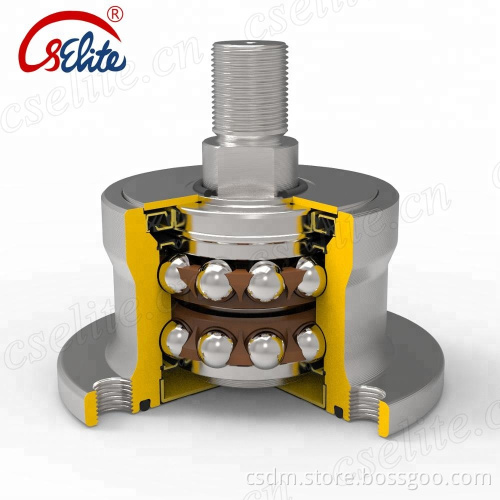

AH-30C Serie Second Generation Agriculture Hub

Independent disc hub

Performance version

In agricultural production, more and more farmers are aware of the importance of correct stubble-cleaning. After the stubbl removal, smashing and returning to the field, the organic matter composition in the soil can be increased, the structure of soil aggregates can be rearranged and combined, the soil can be changed from compact type to loose type, the permeability and water permeability can be increased, the drought resistance and water permeability can be improved, and create conditions for seeding. As the main stubble-killing equipment in foreign countries, high speed disc harrow is often impacted by rocks when turning over the soil, which requires the agri hub unit to have a solid outing ring and excellent load capacity.

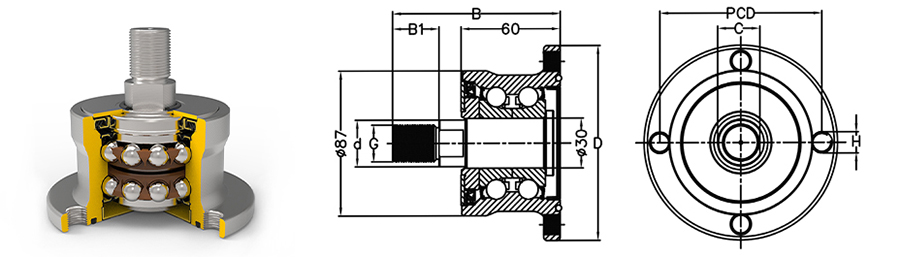

Designation	D	d	B	B1	G	PCD	H	C	OEM No.
－	mm	mm	mm	mm	mm	mm	mm	mm	－
AH-30C-01	117	-	60	-	No shaft	98	4-M12x1.25	-	SKF BAA-0003  Vaderstad 470974/481460/440488
AH-30C-03	117	28	102	25	M24x2	98	4-M12x1.25	25.5	SKF BAA-0005
AH-30C-04	117	28	102	25	M22x1.5	98	4-M12x1.25	25.5	SKF BAA-0004/BAA0023
AH-30C-05	117	28	102	25	M22x1.5	98	5-M12x1.25	25.5	SKF BAA-0012
AH-30C-06	117	28	102	25	M22x1.5	98	6-M12x1.25	25.5	SKF BAA-0006
AH-30C-07	117	30	106	29	M24x2	98	4-M12x1.25	27.5	FKL IL50-98/4T-M24
AH-30C-09	117	30	106	29	M24x2	98	6-M12x1.25	27.5	FKL IL50-98/6T-M24
AH-30C-12	117	28	106	25	M24x2	98	6-M12x1.25	25.5	SKF BAA-0013
