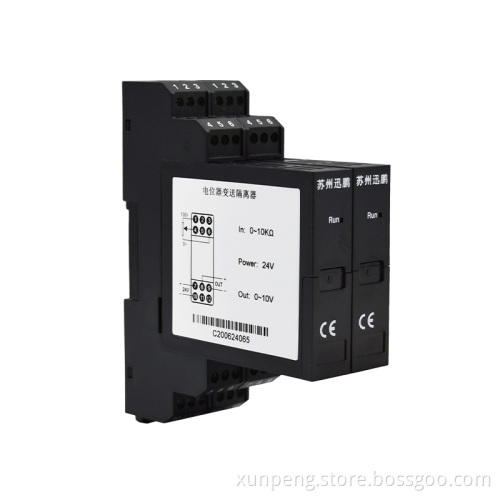

XP Series Potentiometer Isolated Transmitter

XP Series Potentiometer Isolated Transmitter (one input one output, one input two outputs) receives 3-wire potentiometer signal from the industrial field, and converts into a standard process signal that have a linear relationship with the resistance value. It is widely used in data acquisition, signal transmission and conversion, PLC, DCS and other industrial measurement and control systems in the fields of machinery, electricity, telecommunications, petroleum, chemical industry, steel, sewage treatment, building construction, etc. It is used to perfect and supplement the function of the system I/O plug-in, improve the anti-interference ability of the automatic control system, and ensure the stability and reliability of the system.

Features
* Input, output and power are completely isolated, with strong anti-interference ability
* High accuracy, high linearity, long - term running stability
* Modular design, small size, low power consumption, suitable for intensive installation
* Plug-in construction, easy installation, disassembly and maintenance

XP Series Potentiometer Isolated Transmitter code table：

Examples of ordering

Refer to the code table above and provide the model number correctly.

Example 1  input: one channel 0-1KΩ potentiometer, output: one channel 4-20mA, power supply: 24VDC

           order model: XP-R-R1-A420-D

Example 2  input: one channel 0-10KΩ potentiometer, output: two channels 4-20mA, power supply: 24VDC

           order model: XP-R-R3-A420-A420-D（abbreviated as: XP-R-R3-2A420-D）

Example 3  input: one channel 0-560Ω potentiometer, output: one channel 4-20mA, power supply: 24VDC

           order model: XP-R-Y-A420 -D（Y=0-560Ω）

Example 4  input: one channel 0-1KΩ potentiometer, output: one channel 2-wire 4-20mA,

power supply: output loop

           order model: XP-R-R1-L420
