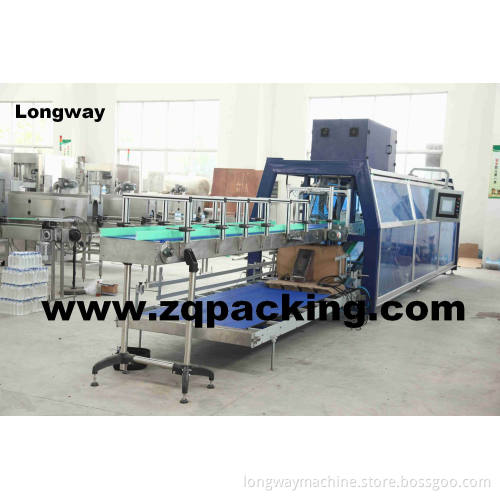

Carton folding glue machine

Facility technology parameter

l Capacity:35-40carton/minute,stepless continuation adjustment

l Production efficiency: about 98%

l Card board enter method: sucker collect/pickup

l Single card glue consumption quantity:2-4gram

l Package type: base on 640ml bottle, as 3*4 package or 330ml bottle
-4*6package type or

as client requirement.

l Applied bottle can outside size: diameter: Dia-60~90mm Height 120~280mm

l Machine outside size: L*W*H=11769*4200*2600(mm)

l Machine used air compressor air pressure: 0.4~0.6Mpa

l gas consumption :0.2NM3/min

l Total power: 19KW

l Machine weight: 6000kg

Reduction Box/gear choose Guangzhou Europe's shi---4set

3.End conveyor choose SEW reducer-2set

4.Frequency conveyor choose Danfoss Product-2set

5.Photoelectric,Sensor switch choose German [P+F" company products.

6.Matching America NORDSON series hot glue machine-1set

Hot glue facility adopt to Japan [NORDSON"
products, melting and usage temperature 150-170

degree, carton Adhesive fasten ratio 100%,and can auto adjust according to
temperature

change, if temperature cannot reach, it will auto stop.

7. Independent vacuum bump---German [ELmo Rietschle" VLT40
product--1set

8.Pneumatic part is German [FESTO" pneumatic unit and vacuum absorb board
component,

solenoid valve.

9.Main electricity element choose France Schneider
product.

10.Main spare parts transmission bearing shaft choose America
[Rexnord [

company product or similar brand.
