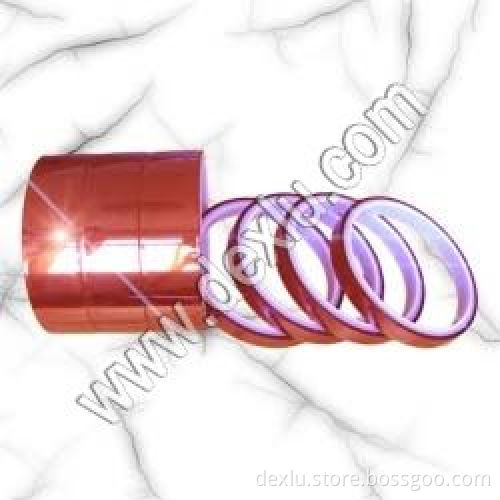

Polyimide Kapton adhesive tape (silicon resin)

Polyimide Kapton adhesive tape (silicon resin)
This kind of tape is made of polyimide material with heat-resistant silicone adhesive, which shows excellent dielectric insulation properties, high heat resistant, excellent solvent resistant, mask-off gold finger contacts during wave soldering, and is widely used for electrical insulation on motor, transformer, coils, PCB masking and so on.
Tape Color: Amber

Overall Thickness: 0.06mm

Backing Thickness: 0.025mm (1mil)

Standard Length: 33m (36yds)

Insulation Class: C (>180C)

Peel Strength: ≥6.2 N/25mm

Tensile Strength: ≥115 N/25mm

Elongation: ≥55 %

Breakdown Voltage: ≥5 KV

Resistivity: ≥1.0x1012 ohm
