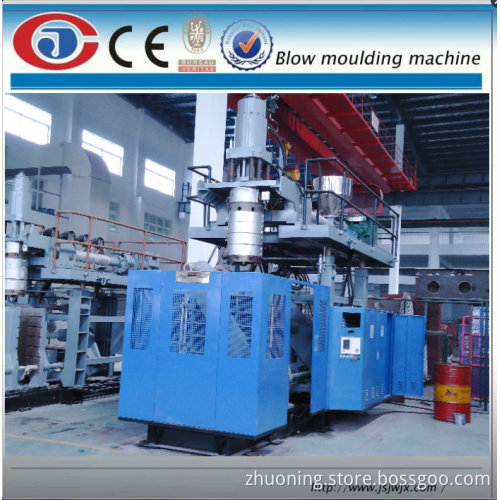

blow moulding machine
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 35 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | china |
|---|---|
| Supply Ability: | 120 |
| Certificate: | ISO ,TUV |
Product Description
Product Description
| MACHINE MODEL | JWB90 | |
| max container capacity | L | 60 |
| machine dimension | M | 5.3*2.4*3.8 |
| total weight | ton | 14 |
| clamping force | kn | 320 |
| platen opoening stroke | mm | 450-1050 |
| platen size | mm | 900*880 |
| max mould size | mm | 720*1200 |
| minimum mould thickness | mm | 460 |
| motor power of pump | kw | 15 |
| air pressure | mpa | 1 |
| air consumption | m3/min | 0.8 |
| total power | kw | 94 |
| average engergy consumption | kw | 56 |
| screw diameter | mm | 90 |
| screw L/D ratio | 24 | |
| plasticing capacity | kg/hr | 140 |
| number of heating zone | 4 | |
| extruder heating power | kw | 21.4 |
| extruder driving | kw | 37 |
