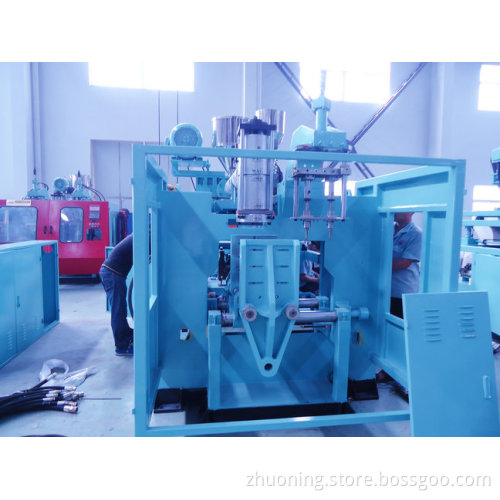

5L engine oil bottle blow molding machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Machine Model		unit	65
Max. Product Capacity		L	5
Output(Cycle Time)		Pc/Hr	240/300
Extruding System	Screw Diameter	mm	75
	Screw L/D Ratio		24
	Extruding Power	Kw	30
	No.of Heaters		3
	Screw Heating Power	Kw	12.5
	HDPE Plasticising Capapcity	Kg/Hr	90
Single Die Head	Max.Die-pin Diameter	mm	150
	Number of Heating Zone		3
	Heating Power of Die Head	Kw	6
Double Die Head	Center Distance of Die Head	mm	160
	Max.Die-pin Diameter	mm	80
	Number of Heating Zone		3
	Heating Power of Die Head	Kw	8
Tri-die Head	Center Distance of Die Head	mm	110
	Max.Die-pin Diameter	mm	65
	Number of Heating Zone		4
	Heating Power of Die Head	Kw	7
Tetra-die Head	Center Distance of Die Head	mm	90
	Max.Die-pin Diameter	mm	40
	Number of Heating Zone		5
	Heating Power of Die Head	Kw	7.2
Clamping System	Clamping Force	KN	75
	Platen Size	mm	390*460
	Platen Opening Stroke	mm	150-500
	Max. Mould Size	mm	400*470
	Mould Thickness	mm	150-300
Power	Total Power	Kw	62.5
	Average Power consumption	Kw	38
	Air Pressure	bar	0.6
	Air consumption	m3/min	0.5/1
	Cooling Water Pressure	bar	3
	Cooling Water Consumption	m3/Hr	4/8
Machine dimension		m	3.82.32.7
Machine Weight		T	5.2
