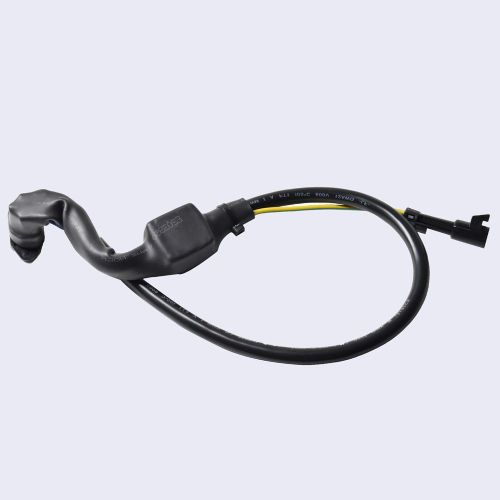

Electric Bicycle Wire Loom

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

Electric bicycle wiring harness is an essential component that connects various electrical parts of an electric bicycle. It plays a crucial role in ensuring the smooth operation of the bicycle's electrical system.
The wiring loom consists of a network of wires, connectors, and terminals that are carefully designed and organized to transmit electrical signals between different components such as the battery, motor, controller, and display panel. These wires are typically insulated to prevent any short circuits or electrical malfunctions.
One of the main advantages of electric bicycle wiring assemblies is their ability to simplify the electrical connections in the bike. With a well-designed wire harness, all the electrical components can be easily connected and integrated, reducing the chances of errors or misconnections during the assembly process.
Moreover, the wire loom also helps in improving the overall safety of the electric bicycle. By properly organizing and securing the wires, it minimizes the risk of accidental contact with moving parts or sharp edges, reducing the chances of electrical hazards.
In addition, a high-quality wire assembly ensures better performance and reliability of the electric bicycle. It helps in maintaining a stable and uninterrupted flow of electrical signals, allowing the various components to communicate effectively and function optimally. This results in a smoother ride and improved efficiency of the electric bicycle.

In conclusion, the electric bicycle cable harness is an essential component that plays a vital role in the functioning and safety of the electric bicycle. Its well-designed structure simplifies electrical connections, enhances safety, and improves the overall performance of the electric bicycle.

Product Name	Electric Bicycle Wire Loom
Specification	Custom Cable & Wire Harness / OEM,ODM Plug: AC Power Plug 15A 250V 3PIN Black QUALTEK P/N: 703W-00/08 Iron Powder Core: Gray White Sleeve Assembly Type L41.6W33.5H28.4 P/N: 74271221 Housing: 1P Nylon66 Black P/N: 12065171
Application	Customer Electronic
Insulated Resistance	≥5 MΩ
On Resistance	≤3Ω
Salt Spray Test	≥48 h
Terminals	Terminal 1: Tinned Copper Applicable Wire Diameter(2-3mm²) P/N: 12129497 Terminal 2: 250 Insulated Terminal Yellow Tin-Electroplated Brass Applicable Wire Diameter 12-10# MOLEX P/N: 19006-0019
Cable	Cable 1: UL2586 12#3C(65/0.254AS) OD: 11.0±0.25mm (Core Wire Color: Blue, Brown, Yellow/Green) Jacket: Black P/N: E336197 Cable 2: UL1015 1C14# 105℃ OD: 3.5mm Yellow and Green 30%
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.
