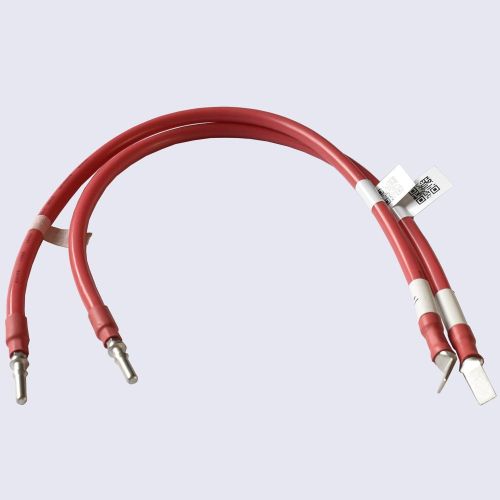

Energy Storage Power Wire Harness

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

Product Name	Energy Storage Power Wire Harness
Specification	Custom Cable & Wire Harness / OEM,ODM Heat-Shrinkable Tube 1: Heat Shrinkable Tube Φ8.0mm Red Environment Friendly Withstand Voltage 600V 125°C Heat-Shrinkable Tube 2: Heat Shrinkable Tube Φ8.0mm White Environment Friendly Withstand Voltage 600V 125°C No Printing PET Label: White Base No Printing L64*W16mm P/N：81007486
Application	Energy Storage, Industry
Insulated Resistance	≥5 MΩ
On Resistance	≤ 3 Ω
Salt Spray Test	≥48 h
Terminals	Terminal 1: 45° Copper Tube Terminal Tinned Copper Applicable Wire Diameter 10mm² P/N C45N10 Terminal 2: Heat Shrinkable Tube Φ8.0mm White Environment Friendly Withstand Voltage 600V 125°C No Printing
Cable	EV15E Automotive Cable 1Cx10mm² (BC 328/0.20) 180℃ 1500V OD:7.1mm Red
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.

Wire harnesses play a crucial role in the field of new energy storage. With the increasing demand for renewable energy sources, the importance of energy storage has become more evident. Wiring harnesses, also known as cable harnesses or wiring looms, are used to connect various components in energy storage systems, such as batteries, inverters, and chargers.
Wires assembly are designed to provide a secure and organized electrical connection between components, ensuring that the energy storage system operates efficiently and safely. The use of wiring assembly also reduces the risk of electrical faults and improves the overall reliability of the energy storage system.
In addition to their practical benefits, wire looms also contribute to the overall aesthetic of energy storage systems. They can be customized to match the color scheme of the system and can be designed to fit into tight spaces, making them an essential component in the design and construction of energy storage systems.
Overall, cable looms are an essential component in the field of new energy storage. They provide a secure and organized electrical connection between components, reduce the risk of electrical faults, improve the overall reliability of the system, and contribute to the overall aesthetic of the energy storage system.
