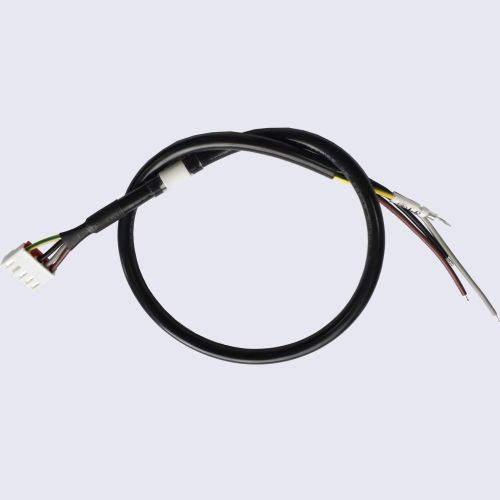

Coder Equipment Wiring Harness

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

Product Name	Coder Wiring Harness
Specification	Custom Cable & Wire Harness / OEM,ODM Housing: H.S.G 5P PH 2.0mm Nylon PA66 UL94V-2 Single Row White HX P/N HX20006-5Y
Application	Internet, Communication
Insulated Resistance	≥5 MΩ
On Resistance	≤ 3Ω
Salt Spray Test	≥48 h
Terminals	Terminal 1: Terminal PH2.0mm Phosphor Bronze Tinned Applicable Wire Gauge 30~24# HX P/N HX20006-PT Terminal 2: Terminal PH: 3.0mm Phosphor Bronze Tinned Applicable Wire Diameter 20~24# P/N CP35TN21PES Terminal 3: 5.2mm Round Bare Terminal Tinned Brass Applicable Wire Diameter 20-16# HXT P/N 530A-21T
Cable	Cable 1: UL2464 24AWG*6C (Core Wire Color: Red, Black, Yellow, White, Green, Orange)+AB OD: 5.9±0.2mm Black Cable 2: UL1007 1Cx20# 80℃ OD: 1.80mm Blacl
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.

Encoder wire harnesses are widely used in various industries such as automotive, aerospace, robotics, and automation. These wiring harnesses are used to connect encoders to the control systems and provide accurate position and speed feedback. In the automotive industry, encoder cables assembly are used in engine control systems, transmission control systems, and anti-lock braking systems. In the aerospace industry, encoder wiring looms are used in flight control systems, navigation systems, and engine control systems. In the robotics and automation industry, encoder cable harnesses are used in robotic arms, conveyor systems, and CNC machines. The use of encoder wiring assembly ensures accurate and reliable feedback, which is essential for the proper functioning of these systems. With the increasing demand for automation and precision, the use of encoder wire assembly is expected to grow in the future.

Coder Wiring Harness
