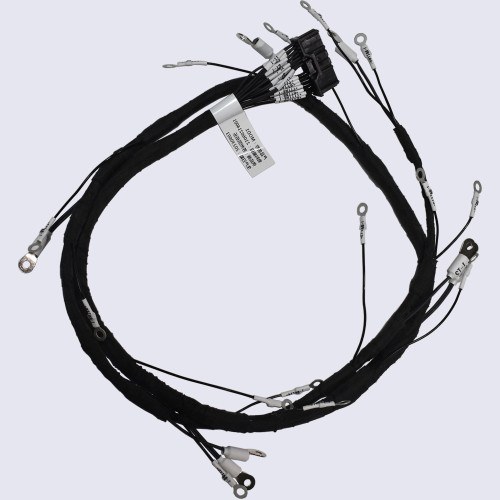

Battery Sampling Wiring Harness

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

When it comes to the installation of battery wire harnesses, there are several important considerations to keep in mind.
Firstly, it is crucial to ensure that the battery wire loom is compatible with the specific type and model of battery being used. Different batteries may have different terminal configurations and voltage requirements, so it is important to select a wire assembly that is designed to work with the specific battery being used.
Secondly, proper insulation and protection of the battery wiring harness is essential. The wiring loom should be securely fastened and routed away from any sharp edges or moving parts that could cause damage or wear to the wiring assembly over time. Additionally, the cable harness should be insulated to prevent any accidental contact with other metal components or wiring, which could lead to short circuits or other electrical issues.
Thirdly, attention should be paid to the length and routing of the cable loom. The cable assembly should be long enough to reach all necessary connections without being overly long, as excess length can increase the risk of tangling or becoming entangled with other components. Additionally, the routing of the wire harness should be carefully planned to avoid any potential interference with other components or moving parts.
Lastly, it is important to follow the manufacturer's instructions and guidelines for the installation of the battery wiring harness. This includes properly connecting the cable harness to the battery terminals, ensuring that all connections are secure and tight, and testing the harness to ensure proper functionality before putting it into use.

By paying attention to these important considerations, the installation of battery harnesses can be done safely and effectively, ensuring reliable and efficient operation of the battery system.

Product Name	Battery Sampling Wiring Harness
Specification	Custom Cable & Wire Harness / OEM,ODM Housing: H.S.G 32P PH: 2.0mm Black Double Row IROSE P/N: IMSA-13065S-2-32Y500 Heat-Shrinkable Tube 1: 2.0mm White Environment Friendly Withstand Voltage 600V 125℃ No Printing Heat-Shrinkable Tube 2: 3.0mm White Environment Friendly Withstand Voltage 600V 125℃ No Printing Heat-Shrinkable Tube 3: 6.0mm White Environment Friendly Withstand Voltage 600V 125℃ No Printing
Application
Insulated Resistance	≥5 MΩ
On Resistance	≤3Ω
Salt Spray Test	≥48 h
Terminals	Terminal 1: 4.3mm Round Plate Bare Copper Applicable Wire Diameter 22#-18# Tinned Brass HXT PN: 430A-01T5-1S2 Terminal 2: PH2.0mm IROSE P/N: IPS-13065T-01A-T
Cable	UL1332 1CX22# 19/0.15 OD: 1.3mm Black
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.
