Sensor Equipped Wire Loom

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

Sensor wire harnesses are an essential component in modern technology, as they connect sensors to the main control unit or data processing system. These wire looms play a crucial role in transmitting signals and power to and from the sensors, ensuring their proper functioning.
Sensor wire assemblies can be classified into various categories based on their application and design. The first category is the automotive sensor wiring harnesses, which are widely used in the automotive industry. These wiring looms connect sensors such as temperature sensors, pressure sensors, and speed sensors to the main control unit of the vehicle. They are designed to withstand harsh conditions such as high temperatures and vibrations.
The second category is the industrial sensor wiring assemblies, which are used in industrial settings. These cable harnesses connect sensors used in manufacturing processes, such as proximity sensors, level sensors, and flow sensors. They are designed to withstand high levels of electromagnetic interference and provide reliable signal transmission.
The third category is the medical sensor cable looms, which are used in the healthcare industry. These cable assemblies connect sensors used in medical devices, such as heart rate monitors, blood pressure monitors, and glucose monitors. They are designed to be flexible, lightweight, and comfortable for the patient while ensuring accurate signal transmission.

In conclusion, sensor wire harnesses are essential for the proper functioning of sensors in various industries. They can be classified into automotive, industrial, and medical sensor wire looms based on their application and design. The classification allows for the development of wire assemblies that are specifically designed to meet the unique requirements of each industry.

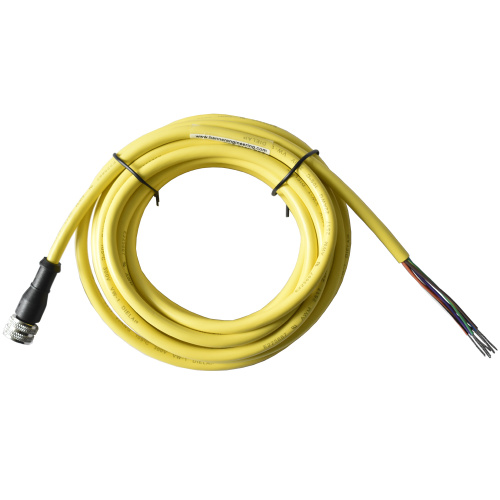

Product Name	Sensor Wire Loom
Specification	Custom Cable & Wire Harness / OEM,ODM Connector 1: M12 8P Female Plug 0.8mm PA66+20% Fiber Black Terminal H59 Copper (CU) With Waterproof Circle for Nut Connector 2: TPU Plug Injection Molding SHORE 85A Black P/N: AE-2285 Label 1: PE Laber With Transparent Film White Area Printable W38.1mm*L38.1mm-12.7mm P/n: JB-230708001 Label 2: Normal W60xL80mm Blank Label Tie: PE Elliptical With Iron Core 1.8x0.9mm Black
Application	Industrial
Insulated Resistance	≥5 MΩ
On Resistance	≤3Ω
Salt Spray Test	≥48 h
Terminals
Cable	Cable 1: UL2517 22AWG8C(41/0.10TS) Core Wire: Black, Blue, Green/Yellow, Brown, Orange/Black, Orange, White, Purple 105℃ Jacket: Yellow OD: 6.0±0.2mm Cable 2: UL2517 22AWG8C(41/0.10TS) Core Wire: Black, Blue, Green/Yellow, Brown, Orange/Black, Orange, White, Purple 105℃ Jacket: Yellow OD: 6.0±0.2mm L+7640+100/-0mm
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.
