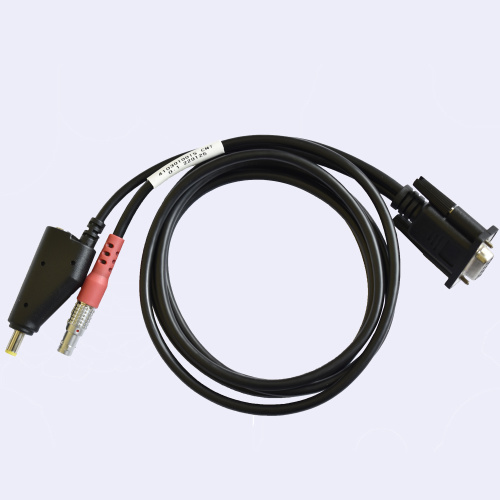

Survey Equipment Cable Harness

Power wire harness is a critical component in measuring equipment, as it provides the necessary electrical connection between various components. Accurate measurement of power wire loom is essential to ensure the smooth functioning of the equipment and prevent any potential safety hazards.
To measure the power wire assembly, several steps need to be followed. Firstly, the power wiring harness is carefully inspected for any visible damages or loose connections. This is important to ensure the reliability of the measurement. Then, a multimeter or other suitable measuring instrument is used to measure the voltage, current, and resistance of the power wiring loom. This helps to identify any potential issues such as short circuits or open circuits.
In addition to measuring the electrical parameters, it is also crucial to check the insulation resistance of the power wiring assembly. This can be done using a megohmmeter, which measures the resistance between the conductors and the insulation. A high insulation resistance indicates that the power cable harness is in good condition, while a low insulation resistance suggests a potential fault.
Regular measurement of the power cable loom is recommended to detect any deterioration or damage over time. This can help prevent any unexpected failures or accidents. By ensuring accurate and reliable measurements of the power cable assembly, the overall performance and safety of the measuring equipment can be maintained at a high level.
