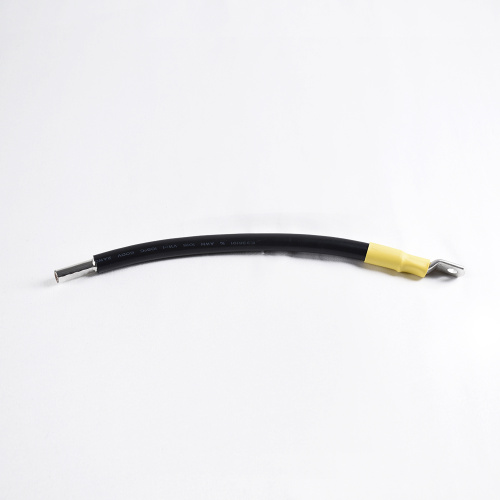

High-Voltage Connection Wire Harness

When installing a high voltage power supply wiring harness, there are several important precautions to keep in mind to ensure safety and proper functionality.
Firstly, it is crucial to choose the right type and size of wire for the wiring loom. High voltage power supplies require wires with sufficient insulation and voltage rating to handle the high voltages involved. Using wires with inadequate insulation can lead to electrical leakage or even electrical shock hazards.
Secondly, it is essential to properly route and secure the wiring assembly. The wiring should be routed away from any heat sources, sharp edges, or moving parts that could cause damage or wear on the wires. Additionally, the wiring should be secured using appropriate clamps or ties to prevent any movement or strain on the connections.
Furthermore, all connections within the wire harness should be carefully made and insulated. Any loose or poorly insulated connections can result in electrical arcing, which can damage the power supply or lead to electrical hazards. It is recommended to use crimp connectors or soldered connections, along with heat shrink tubing or electrical tape for insulation.
Lastly, regular inspections and maintenance of the wire loom are necessary to ensure its continued safe operation. Any signs of wear, damage, or loose connections should be promptly addressed and repaired.
In conclusion, attention to detail and adherence to safety guidelines are crucial when installing a high voltage power supply wire assembly. By selecting the appropriate wire, routing and securing the wiring properly, making secure connections, and conducting regular inspections, the risk of electrical hazards can be minimized, and the power supply can function reliably.
