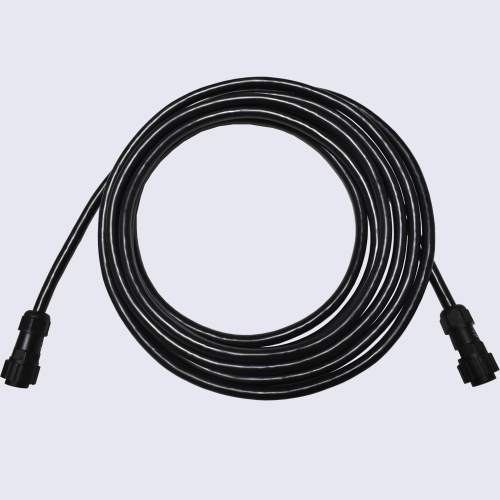

Electric Instrument Wire Harness

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

Electric tool wiring harness is an essential component in the manufacturing of electric tools. It is a bundle of wires and cables that are arranged in a specific pattern to connect different components of the tool. The wiring loom is designed to protect the wires from damage, reduce electromagnetic interference, and ensure that the tool functions correctly.
The electric tool wiring assembly is made up of several components, including wires, connectors, terminals, and protective sleeves. The wires are made of copper or aluminum and are coated with a layer of insulation to protect them from damage. Connectors and terminals are used to connect the wires to different components of the tool, such as the motor or battery. Protective sleeves are used to protect the wires from abrasion, heat, and moisture.
The electric tool wire harness is designed to meet specific requirements, such as voltage, current, and temperature. The wire loom is tested rigorously to ensure that it meets the required standards and can withstand the harsh conditions of the tool's operation. The wire assembly is also designed to be flexible and durable, allowing it to withstand the constant movement and vibration of the tool.

In conclusion, the electric tool cable harness is a critical component in the manufacturing of electric tools. It plays a crucial role in ensuring that the tool functions correctly and safely. Manufacturers must ensure that the cable loom meets the required standards and is designed to withstand the harsh conditions of the tool's operation.

Product Name	Electric Instrument Wire Harness
Specification	Custom Cable & Wire Harness / OEM,ODM Connector 1: Aerial Plug UAC20TR 9P Male Main Body PA66 Black PIN Head Plated UTL: SD20-9 Connector 2: Transparent Natural Color (Welding Point Protected）3M P/N: DP-100 clear or 3M P/N: DP-100 Plus clear Heat-Shrinkable Tube 1: 2.0 mm Black Environment-Friendly Withstand Voltage 600V 125℃ Heat-Shrinkable Tube 2: 3.0 mm Black Environment-Friendly Withstand Voltage 600V 125℃ Label: Label PET With Transparent Film Printable on White Area W25.4mm*L40.0mm-12.7mm
Application
Insulated Resistance	≥5 MΩ
On Resistance	≤3Ω
Salt Spray Test	≥48 h
Terminals
Cable	(3C*18#(37/0.16)+AB)+1C+20#(19/0.19)+2P+22#(19/0.15) Jacket TPU Black OD: 10.6士0.2mm (Drag Chain 5 Million Times)
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.
