PCB Equipment Wiring Assembly

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

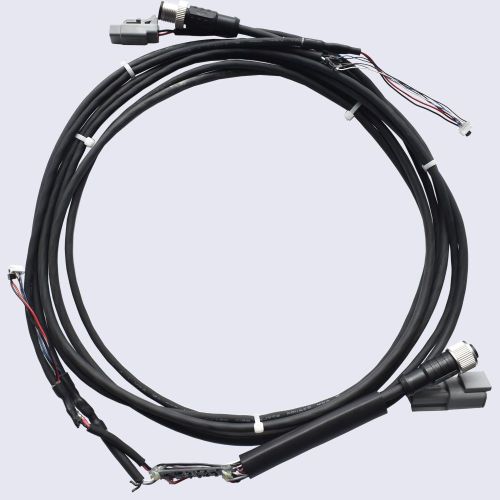

Product Name	PCB Wiring Assembly
Specification	Custom Cable & Wire Harness / OEM,ODM Housing 1: H.S.G 6P PH 1.25mm PBTP UL94V-0 White Single Row Molex P/N 51021-0600 Housing 2: H.S.G Lock Plate Thermoplastic Orange Amphenol P/N: AWM-2P Housing 3: H.S.G 2P Thermoplastic Gray Amphenol P/N: ATM04-2P Housing 4: H.S.G 2P Thermoplastic Thermoplastic Amphenol P/N: ATM06-2S Connector 1: M12 5P Female Plug Cable L: 145+20/-0mm Black Core Wire: Black, Brown, Blue, White, Gray(Provided by GS) Connector 2: M12 5P Male Plug Cable L: 1765+20/-0mm Black Core Wire: Black, Brown, Blue, White, Gray(Provided by GS)
Application	Industrial
Insulated Resistance	≥5 MΩ
On Resistance	≤1 Ω
Salt Spray Test	≥48 h
Terminals	Terminal 1: Copper Alloy Plated Applicable Wire Diameter 16#-22# Amphenol P/N AT60-20-0144 Terminal 2: Copper Alloy Plated Applicable Wire Diameter 16#-22# Amphenol P/N AT62-20-0144
Cable
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.

PCB wiring harnesses are widely used in various industries such as automotive, aerospace, medical, and consumer electronics. They play a crucial role in transmitting electrical signals and power between different components of a system.
In the automotive industry, PCB wiring looms are used to connect various sensors and electronic control units (ECUs) in a vehicle. They ensure reliable communication between different systems, such as the engine, transmission, and brakes, to improve overall performance and safety.
In the aerospace industry, PCB wiring assemblies are used to connect various avionics systems, including communication, navigation, and flight control systems. They are designed to withstand extreme temperatures, vibrations, and electromagnetic interference, ensuring reliable operation in harsh environments.
In the medical industry, PCB wire harnesses are used to connect various medical devices, such as ultrasound machines, MRI scanners, and patient monitors. They ensure accurate and reliable transmission of vital signals and data, improving patient care and safety.
In the consumer electronics industry, PCB wire looms are used to connect various components of electronic devices, such as smartphones, laptops, and gaming consoles. They ensure seamless communication between different systems, improving overall performance and user experience.
Overall, PCB wires assembly are an essential component in various industries, ensuring reliable communication and power transmission between different systems and components.

PCB Wiring Assembly
