PCB Equipment Wiring Loom

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/A,D/P,Others
Incoterm:	FOB,CFR,CIF,EXW,FAS,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

Printed circuit boards (PCBs) are widely used in various industries, including the field of wiring harnesses. A wiring loom is a group of wires or cables that are bound together to transmit signals or power. PCBs are used in wiring assemblies to provide a stable and reliable connection between components.
In the automotive industry, PCBs are used in the wire harnesses of cars to connect various electrical components such as sensors, lights, and audio systems. PCBs are also used in the aerospace industry to connect avionics systems and control panels.
In the telecommunications industry, PCBs are used in the wire looms of communication devices such as cell phones and modems. PCBs provide a compact and efficient way to connect the various components in these devices.
PCBs are also used in the medical industry to connect various medical devices and equipment. PCBs are used in devices such as MRI machines, ultrasound machines, and patient monitoring systems.

In conclusion, PCBs are an essential component in the field of wire assemblies. They provide a reliable and efficient way to connect various components in different industries, including automotive, aerospace, telecommunications, and medical.

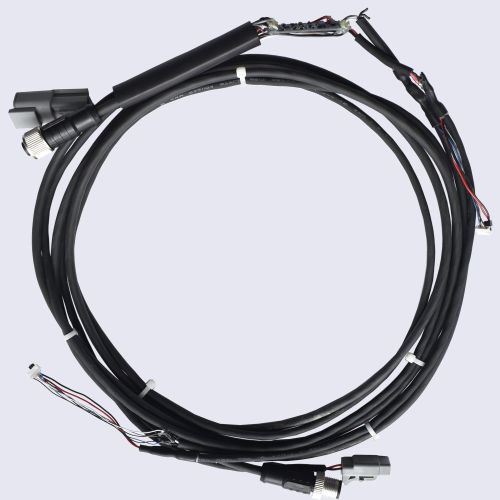

Product Name	PCB Wiring Loom
Specification	Custom Cable & Wire Harness / OEM,ODM Connector 1:M12 5P Male Plug Cable L: 1765+20/-0mm Black Core Wire: Black, Brown, Blue, White, Gray (Provided by GS) Connector 2: M12 5P Female Plug Cable L: 145+20/-0 mm Black Core Wire: Black, Brown, Blue, White, Gray(Provided by GS)
Application	Industrial
Insulated Resistance	≥5 MΩ
On Resistance	≤ 1 Ω
Salt Spray Test	≥48 h
Terminals	Copper Alloy Plated Applicable Wire Diameter 16#-22# Amphenol P/N AT62-20-0144
Cable	Cable 1: UL1061 1Cx26# 80℃ OD:1.0 mm Red Cable 2: UL2517 5C24AWG <11/0.16TS) Brown/White/Blue/Black/Gray+F+P OD: 4.9士0.2 PVC Black (UV Resistant) Cable 3: UL2517 2C22AWG (17/0.16TS) Red/Black OD: 4.3土0.2 UV Resistant Black PVC Matte Surface
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.
