Module Sampling Wire Harness

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000ocs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

Voltage and temperature sampling wire harnesses are crucial components in the electrical and electronic industry. These wire looms are designed to measure and monitor the voltage and temperature levels in different applications, ensuring the optimal performance and safety of the systems they are integrated with.
A voltage sampling wire assembly is primarily used to monitor the voltage levels within a system. It is typically connected to a voltage sensor or a meter that can accurately read and display the voltage readings. This wiring harness is crucial in preventing overvoltage or undervoltage situations that could potentially damage the system or cause it to malfunction.
On the other hand, a temperature sampling wiring loom is used to measure the temperature within a system. It is usually connected to a temperature sensor or a thermometer that can accurately measure and display the temperature readings. This wiring assembly is essential in maintaining the correct temperature levels in a system, preventing overheating or freezing scenarios that could potentially harm the system or affect its performance.

Both voltage and temperature sampling cable harnesses are made of high-quality, durable materials to withstand the harsh conditions they are exposed to. They are designed to provide accurate and reliable readings, ensuring the smooth operation of the systems they are part of. Their role in maintaining the safety and efficiency of electronic and electrical systems cannot be overstated.

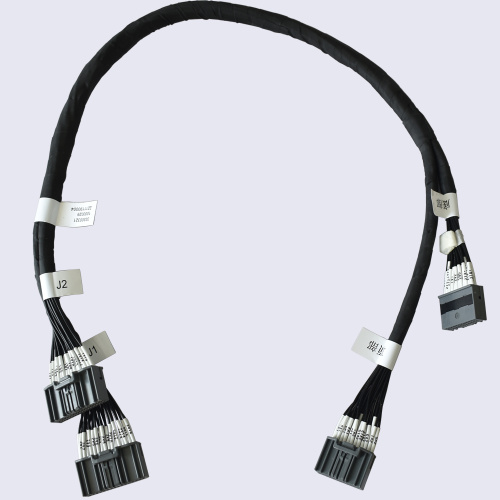

Product Name	Cylindrical Module Voltage And Temperature Sampling Wire Harness
Specification	Custom Cable & Wire Harness / OEM,ODM Dielectric Strength: ≥500V Acetate Tape: W19xT0.18mm Black Single-Sided Adhesive Heat-Shrinkable Tube 1: 2.0mm White Environment Friendly Withstand Voltage 600V 125℃ No Printing Heat-Shrinkable Tube 2: 3.2mm Black Environment Friendly Withstand Voltage 600V 125℃ Adhesive on Inside Wall
Application	New Energy
Insulated Resistance	≥5 MΩ
On Resistance	≤1Ω
Salt Spray Test	≥48 h
Terminals	PH:2.2mm Tin Plated Applicable Wire Diameter 20#-24 JAE P/N:M34S75C4F1
Cable	UL1332 1Cx22# 19/0.15 -65~200℃ OD: 1.42mm Black
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.

Cylindrical Module Voltage And Temperature Sampling Wire Harness
