Battery Management System Wire Loom

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

The specification of wire harness and cables for the battery management system of new energy vehicles plays a crucial role in ensuring the efficient and safe operation of the vehicles.
Firstly, the wire loom and cables used in the battery management system must be able to handle high voltage and current levels. This is because the battery packs in new energy vehicles typically operate at high voltage levels, and the wire assembly and cables must be able to withstand these high voltages without any insulation breakdown or short circuits. Additionally, the cables must be able to handle high current levels to ensure the smooth flow of electricity between the battery cells and the management system.
Secondly, the wiring harness and cables must have excellent insulation properties. This is important to prevent any leakage of electricity and to ensure the safety of the vehicle and its occupants. The insulation material used in the wiring loom and cables must have high dielectric strength and low conductivity to effectively isolate the high voltage components from other parts of the vehicle.
Lastly, the wiring assembly and cables must be designed to be durable and reliable. They should be able to withstand the harsh operating conditions of the vehicle, including high temperatures, vibrations, and mechanical stress. The connectors used in the cable harness must also be robust and resistant to corrosion to ensure a secure and reliable connection between the battery management system and other components of the vehicle.

In conclusion, the specification of cable loom and cables for the battery management system of new energy vehicles is crucial for ensuring the efficient and safe operation of these vehicles. High voltage and current handling capabilities, excellent insulation properties, and durability are key factors to consider when designing these cable assemblies and cables.

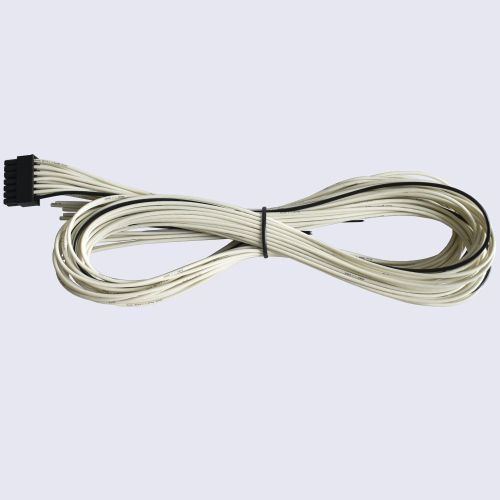

Product Name	BMS Wire Loom
Specification	Custom Cable & Wire Harness / OEM,ODM
Application	Vehicle
Insulated Resistance	≥5 MΩ
On Resistance	≤2Ω
Salt Spray Test	≥48 h
Terminals
Cable	Cable 1: UL1007 1Cx22# 80℃ OD: 1.60mm White (Black Printing "6") L=1230±5 Cable 2: UL1007 1Cx22# 80℃ OD: 1.60mm White (Black Printing "5") L=1230±5 Cable 3: UL1007 1Cx22# 80℃ OD: 1.60mm White (Black Printing "4") L=1230±5 Cable 4: UL1007 1Cx22# 80℃ OD: 1.60mm White (Black Printing "3") L=1230±5 Cable 5: UL1007 1Cx22# 80℃ OD: 1.60mm White (Black Printing "2") L=1230±5 Cable 6: UL1007 1Cx22# 80℃ OD: 1.60mm White (Black Printing "1") L=1230±5 Cable 7: UL1007 1Cx22# 80℃ OD: 1.60mm White (Black Printing "7") L=1230±5
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.
