Servo Motor Wire Harness

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

A servo motor wire harness is an essential component in any servo motor system. It is a set of wires that connect the servo motor to the controller and power supply. The wire loom is responsible for transmitting the necessary signals and power to the motor to ensure it operates smoothly and accurately.
The wire assembly is made up of several wires of different colors and thicknesses. These wires are carefully selected to ensure they can handle the voltage and current required by the servo motor. The wires are also shielded to protect them from electromagnetic interference, which can cause errors in the motor's operation.
A well-designed wiring harness is essential for the proper functioning of the servo motor system. It should be carefully installed and routed to prevent any damage or interference. The wiring loom should also be regularly inspected and maintained to ensure it remains in good condition.

In conclusion, the servo motor wiring assembly is a critical component in any servo motor system. It is responsible for transmitting signals and power to the motor, ensuring it operates smoothly and accurately. A well-designed and maintained cable harness is essential for the proper functioning of the servo motor system.

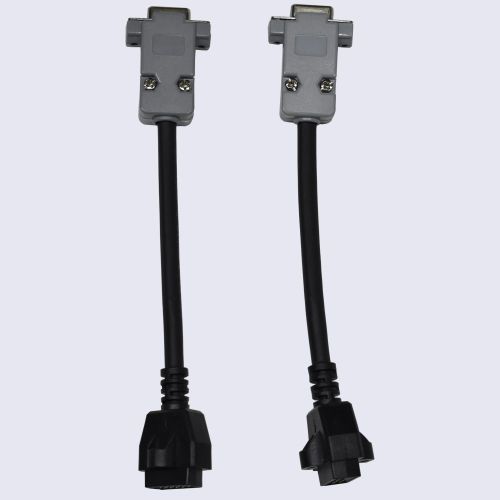

Product Name	Servo Motor Wire Harness
Specification	Custom Cable & Wire Harness / OEM,ODM Housing 1: 2*5PIN Pin Header Double-Rowed Insulation180℃ PH2.54 Black P/N: PH-111-210SOBKC001 Housing 2: DB Female Plug Matched Crimped Semigolden Female Terminal P/N 80-DBF000 Housing 3: DB9P Female Plug Crimped Glue Core Postpositional Hex Nut Housing 4: DB9P Plastic Housing Up and Down Shim Screw Nut Plug: NOUL Plug/45P Black Heat-Shrinkable Tube: 7.0mm Black Environemnt-Friendly Withstand Voltage 600V 125℃
Application	Industrial
Insulated Resistance	≥5 MΩ
On Resistance	≤2Ω
Salt Spray Test	≥48 h
Terminals
Cable	UL2464 26AWG*9C+AL+B Black OD: 6.0
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.
