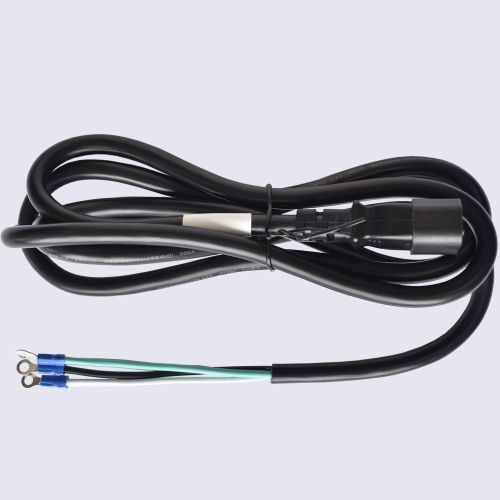

Power Connection Wiring Assembly

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

Medical cable connectors are essential components in the healthcare industry, as they play a crucial role in connecting various medical devices to ensure accurate and reliable data transmission. These connectors are designed to meet the specific requirements of medical applications, such as high-quality signal transmission, durability, and compatibility with sterilization processes.
There are several different types of medical cable connectors available, each with its own unique features and applications. One common type is the circular connector, which is widely used in applications such as patient monitoring, diagnostic imaging, and surgical equipment. Circular connectors are known for their robustness and ease of use, making them suitable for demanding medical environments.
Another type of medical cable connector is the rectangular connector, which is commonly used in applications where space is limited, such as portable medical devices and wearable sensors. These connectors are compact and lightweight, making them ideal for applications that require mobility and flexibility.
In addition to circular and rectangular connectors, there are also specialized connectors designed for specific medical applications. For example, connectors used in electrocardiogram (ECG) machines require high-quality signal transmission to accurately monitor a patient's heart activity. Similarly, connectors used in ultrasound machines need to be able to withstand high-frequency signals without interference.
Overall, the classification of medical cable connectors is essential in ensuring the proper functioning of medical devices and the safety of patients. Healthcare professionals must carefully consider the specific requirements of their applications when selecting the appropriate connector type. By choosing the right connector, healthcare providers can ensure accurate data transmission, improve patient care, and enhance overall healthcare outcomes.

Product Name	Power Connection Wiring Assembly
Specification	Custom Cable & Wire Harness / OEM,ODM Heat-Shrinkable Tube: 10.0mm White Environment Friendly Withstand Voltage 600V 125℃ No Printing Label: Normal W60xL80mm Blank PE Bag: Transparent, L: 800W: 800T: 0.05mm No Printing Paperboard: B33 L: 450*W: 350mm
Application	Medicine
Insulated Resistance	≥5 MΩ
On Resistance	≤3Ω
Salt Spray Test	≥48 h
Terminals	Terminal 1: 4.3mm Round Terminal Tinned Copper Blue PVC Insulated Applicable Wire Diameter 16#-14# Panduit P/N PV14-8R Terminal 2: 10.5mm Round Terminal Tinned Copper Blue PVC Insulated Applicable Wire Diameter 16#-14# Panduit P/N PV14-10R-C
Cable	(UL) E209524 SJT VW-1 105℃ 3X2.08mm² (14AWG) 300V Black Size (Plug Included): 2140±30mm PHINO P/N: P310-0615-1
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.
