Transducer Equipment Wiring Harness

Get Latest Price

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs/year
Supply Ability:	1000000pcs/year
Payment Type:	L/C,T/T,D/P,D/A,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Certificate:	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
HS Code:	8544422100
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Ningbo

Product Description

Sensors have revolutionized the field of online beam control by providing real-time data on the position and orientation of the beam. These sensors are used in a variety of applications, including laser cutting, welding, and drilling.
One common application of sensors in beam control is in laser cutting. By using sensors to monitor the position and orientation of the laser beam, operators can adjust the beam's trajectory in real-time to ensure precise cuts. This technology has led to significant improvements in the quality and efficiency of laser cutting operations.
Similarly, sensors are also used in welding applications to ensure that the welding beam is directed precisely at the desired location. This helps to reduce the likelihood of welding defects and ensures that the final product meets the required specifications.
Finally, sensors are also used in drilling applications to monitor the position and orientation of the drill bit. This allows operators to adjust the drilling trajectory in real-time to ensure that the hole is drilled accurately and to the required depth.

Overall, sensors have had a significant impact on the field of online beam control, enabling operators to achieve greater precision and efficiency in a range of industrial applications.

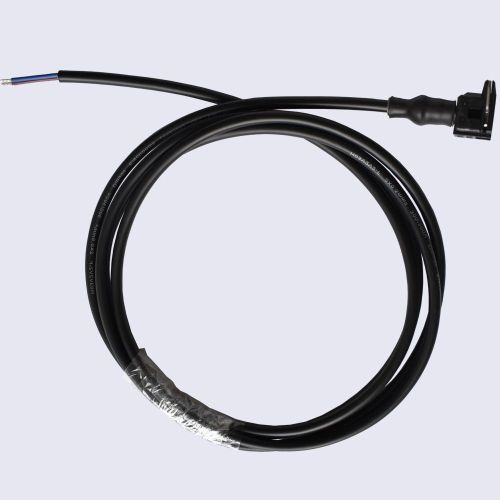

Product Name	Transducer Wiring Harness
Specification	Custom Cable & Wire Harness / OEM,ODM Housing: H.S.G 2P PH 5.0mm Black TE P/N: 963040-3 Waterproof Plug: Hollow Blue Applicable Wire Diameter 1.2~2.1mm TE P/N: 828904-1 Wire Pin: TE P/N: 926933-1 Heat-Shrinkable Tube: 15.0mm Black Environment-Friendly Withstand Voltage 600V 125°C Glue on Inside Wall Tie: PA66 L100xW2.5mm Black P/N: GN190
Application	Industrial
Insulated Resistance	≥5 MΩ
On Resistance	≤3Ω
Salt Spray Test	≥48 h
Terminals	PH 5.0mm Tinned Brass Applicable Wire Gauge 0.5-1.0mm² TE P/N:929939-1
Cable	H03V2V2-F 0.5mm²*2C (Brown, Blue) Jacket Black OD: 5.3土0.2 mm
MOQ	Sample order/small order can be accepted
R&D	Provide complete engineering and design services
Certificates	ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC	Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.
