Industrial Steel Chimney Solutions (custom accepted)

Industrial Steel Chimney Solutions (custom accepted)

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20000PCS/Month
Supply Ability:	1PCS/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE, UL
HS Code:	73269090
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai

Product Description

Our double wall Class-A insulated chimney system delivers superior safety and performance. The 25mm thick high density ceramic fiber blanket insulation is sandwiched between two 0.5mm thick 304 stainless steel walls.

Our chimney is certified and listed to the UL 103HT standard and designed for appliances that are listed for use with a 2100 Degree Fahrenheit High Temperature chimney system. It can be used with wood stoves, fireplaces, fireboxes, furnaces, boilers, water heaters, pizza ovens and other residential heating appliances fueled by wood, gas, coal or oil.

Rainbow undertook the pipeline construction of many famous projects in China, including 65% of the Beijing Olympic Games, 75% of the Shanghai World Expo, 85% of Lu Jia Zui Financial District, and 100% of the Nanjing youth Olympic Games. Rainbow is also well-famed in the international market.

The company's main products are Stove Chimney; Industrial Steel Chimney Stack; Boiler Chimney; Pizza Oven Chimney; Chimney Design; Heater Chimney

Product description

Product Name	Chimney with stock product
Material	SUS304;SUS430 & ba
Color	stainless steel colour, color painted or powder coated, can be customized
Standard	EN 1856-1,
Certificate	CE, passed certificate accords to UL103 standard
Size	5", 6", 7", 8", 10", 12"
Thickness	0.4mm-1.0mm
Outer wall hardness	177HV
inner wall hardness	200HV
outer wall Tensile strength	480MPa/mm2
inner wall Tensile strength	690MPa/mm2
Insulation material	Cotton insulation-Aluminum silicate
Insulation Resistance high temperature	1, 200 degree
Insulation Thickness	25mm
Fiber Diameter	≥ 0.006 micron
Length	1200mm-120mm
Used	Wood fireplaces, pellet fireplaces, stove, boiler, generator, heater chimney
Connection method	Twist or insert

Advantages
1.Without thermal bridge, decrease heat transfer between inner wall and outer wall, keep a better insulation.
2. Spigot part and the chimney body is integrated, increase the strength of connection
The materials, thickness will be available according to customer's request.

Application
Wood fireplaces, pellet fireplaces, stove, boiler, generator, heater chimney

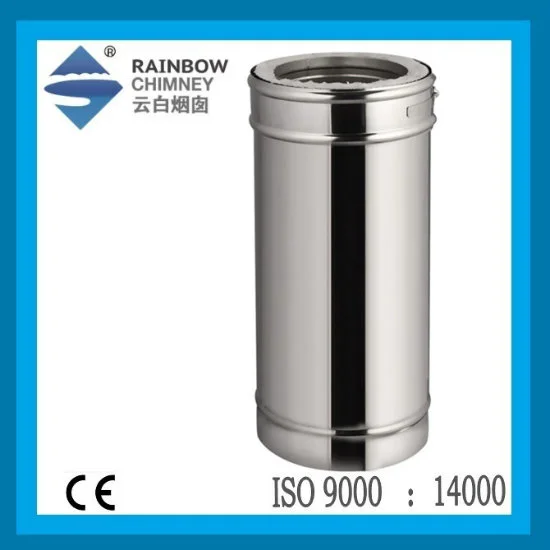

Product Picture
stove chimney pipe
