High Quality Plastic Pipe Winder

$4500.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Port:: Shanghai, Ningbo, Qingdao

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	30 Set/Sets per Month
Payment Type:	L/C,T/T,MoneyGram
Port:	Shanghai, Ningbo, Qingdao

Product Description

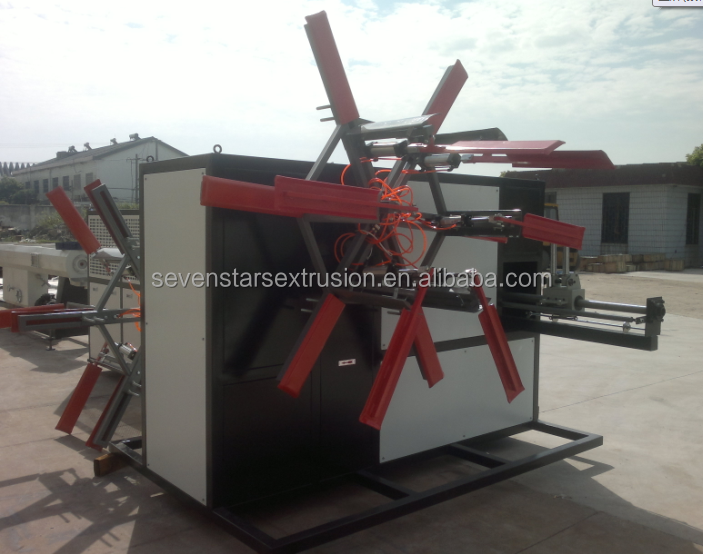

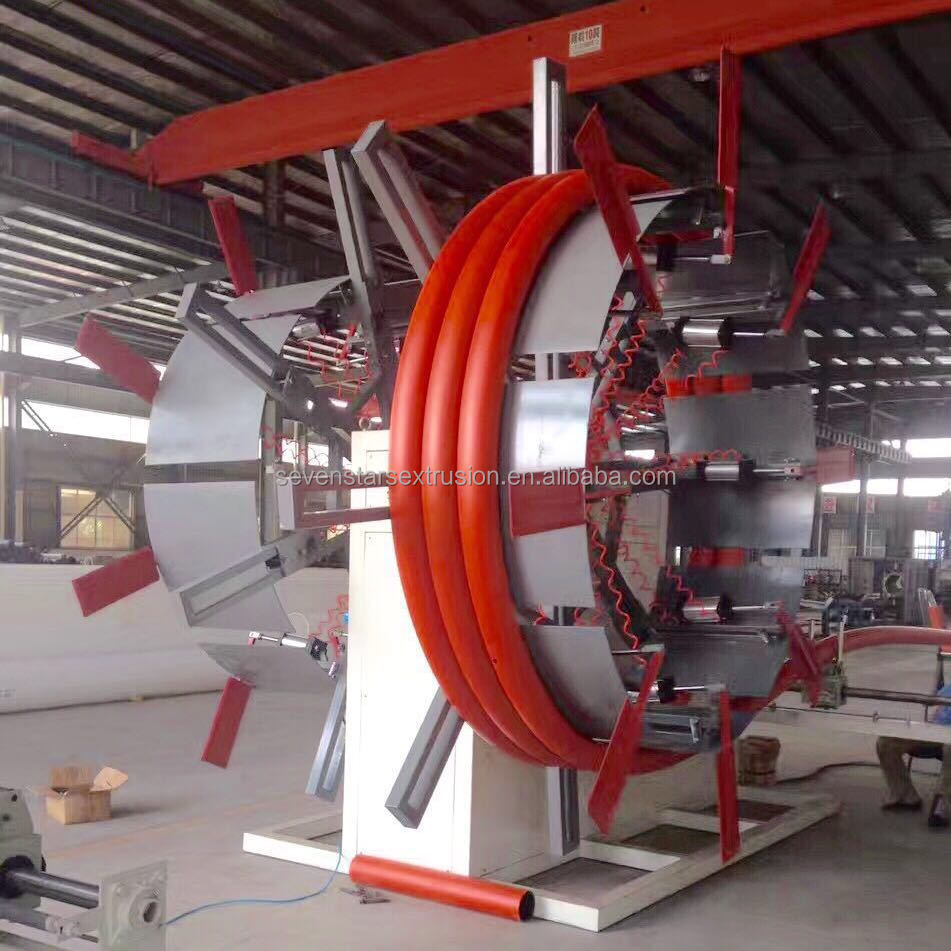

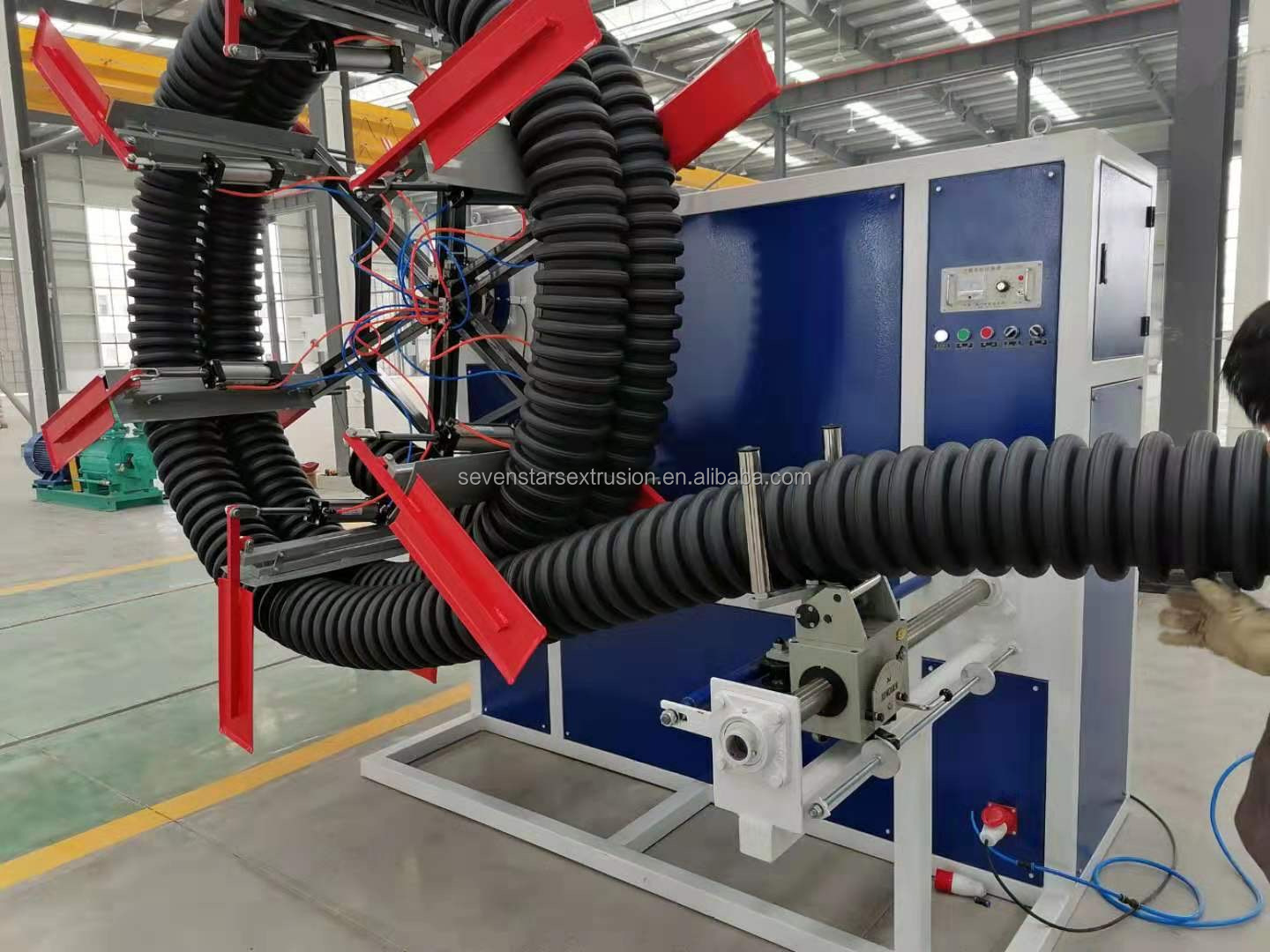

High Quality Plastic Pipe Winder

Our brand name is Sevenstars Machine Pipe Winder.It is a High Density Polyethylene Pipe Winder and Optional For Plastic Pipe Winder.High Quality Plastic Pipe Winder - A wide range of roll equipment is available for winding groups of material onto spools/spools or rolls (stretch wraps or strips). In-line and off-line winders are available for materials ranging in size from 0.25" (6.35 mm) to 10" (254 mm). Compass can provide standard and custom mechanical winding applications. Material handling solutions are available for up to 21" (533 mm) umbilical cables.This machine can be customized !Just let us know your detail requirements,we will do like that!

Product Description

winder diameter:	2500-3500mm
winder speed:	0.5-15m/min
winder width:	700mm
winder pipe size:	16-110mm
air pressure:	0.6Mpa
motor:	10-64N.M
winder pipe length (110mm pipe):	≥200m
size:	depend on different model

Specification for Three station winder machine
Applicable pipe diameter	16-110mm
Winding speed	Adjustable (according to extrusion speed)
16-40mm PE pipe	Double winding disc heads on one side
50-110mm PE pipe	Single winding disc head on one side
Winding inner diameter	Between 1200mm and 2500mm
Outer winding diameter	Between 2200mm and 3500mm
Winding width	650mm(adjustable)
Winding length	According to the pipe diameter
Winding speed control	Moment motor controller
Winding displacement	Automatic by air cylinder
Discharge mode	Pneumatic drive
Moment motor powder for -63110mm PE pipe	40N.M*1 set
Moment motor powder for 20-50mm PE pipe	20N.M*1 set
Air pressure	0.5-0.6Mpa

We are the manufacturer, we can control both the manufacture of the machine materials and its fabrication into the finished High Density Polyethylene Pipe Winder to ensure the dependability of our Optional For Plastic Pipe Winder. By using only the highest quality raw materials and subjecting our Sevenstars Machine Pipe Winder to the robust quality assurance program, our commitment to our customers inspires value-added quality into every product we sell.
