Winding Coiling Machine For PE Pipe Extrusion Line

Winding Coiling Machine For PE Pipe Extrusion Line

$4500.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: Shanghai, Ningbo, Qingdao

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	30 Set/Sets per Month
Payment Type:	L/C,T/T,MoneyGram
Transportation:	Ocean,Land
Port:	Shanghai, Ningbo, Qingdao

Product Description

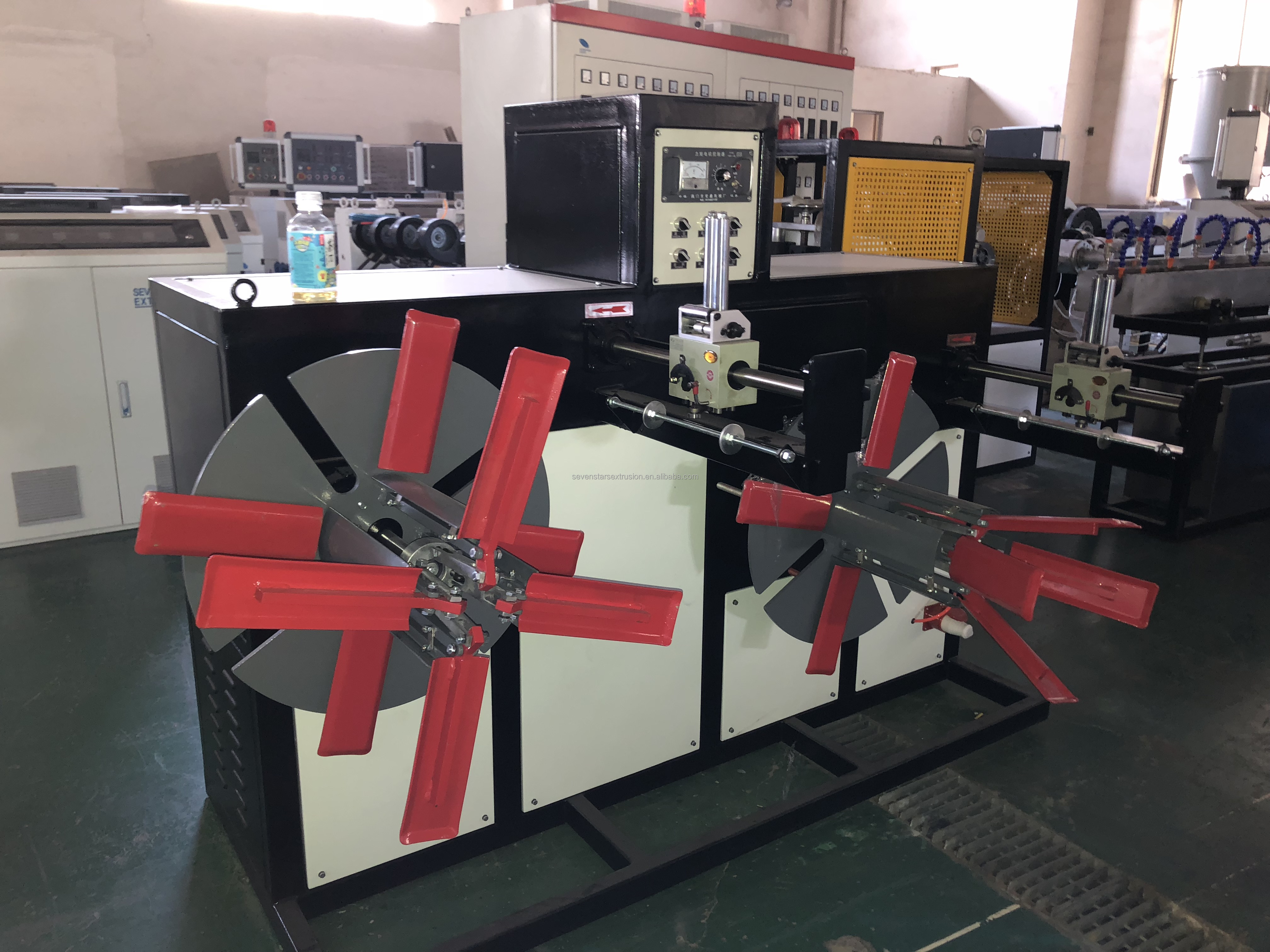

Winding Coiling Machine For PE Pipe Extrusion Line

Our machine can be customized ! Not only is it Process Automate Winding Coiling Machine,but also is Safe And Reliable coiler and Automation Pipe Winder.Just let us know your detail requirements,we will do like that!

Product Description

winder diameter:	2500-3500mm
winder speed:	0.5-15m/min
winder width:	700mm
winder pipe size:	16-110mm
air pressure:	0.6Mpa
motor:	10-64N.M
winder pipe length (110mm pipe):	≥200m
size:	depend on different model

Winder Machine For Extrusion Line

Specification

Specification for Three station winder machine
Applicable pipe diameter	16-110mm
Winding speed	Adjustable (according to extrusion speed)
16-40mm PE pipe	Double winding disc heads on one side
50-110mm PE pipe	Single winding disc head on one side
Winding inner diameter	Between 1200mm and 2500mm
Outer winding diameter	Between 2200mm and 3500mm
Winding width	650mm(adjustable)
Winding length	According to the pipe diameter
Winding speed control	Moment motor controller
Winding displacement	Automatic by air cylinder
Discharge mode	Pneumatic drive
Moment motor powder for -63110mm PE pipe	40N.M*1 set
Moment motor powder for 20-50mm PE pipe	20N.M*1 set
Air pressure	0.5-0.6Mpa
