Plastic pipe winder machine

$4500.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: Shanghai, Ningbo, Qingdao

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	30 Set/Sets per Month
Payment Type:	L/C,T/T,MoneyGram
Transportation:	Ocean,Land
Port:	Shanghai, Ningbo, Qingdao

Product Description

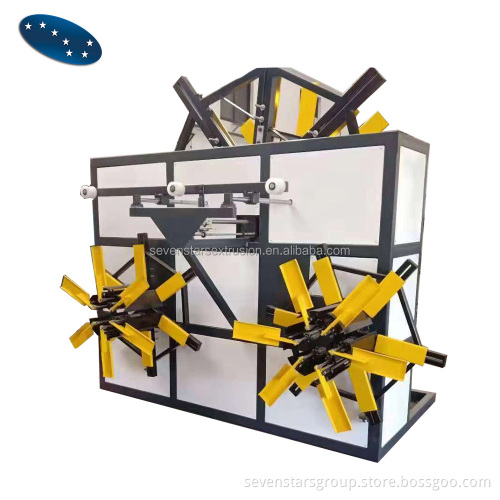

16-110mm plastic pipe winder coiler machine

Product Description

1. winder diameter: 2500-3500mm
2. winder speed: 0.5-15m/min
3. winder width: 700mm
4. winder pipe size: 16-110mm
5. air pressure: 0.6Mpa
6. motor10-64N.M
7. auto distributing pipe
8. Pneumatic release pipe.
9. winder pipe length (110mm pipe): ≥200m
10. size:depend on different model

This machine can be customized !

Just let me know your detail requirements,we will do like that!

Specification

Specification for Three station winder machine
Applicable pipe diameter	16-110mm
Winding speed	Adjustable (according to extrusion speed)
16-40mm PE pipe	Double winding disc heads on one side
50-110mm PE pipe	Single winding disc head on one side
Winding inner diameter	Between 1200mm and 2500mm
Outer winding diameter	Between 2200mm and 3500mm
Winding width	650mm(adjustable)
Winding length	According to the pipe diameter
Winding speed control	Moment motor controller
Winding displacement	Automatic by air cylinder
Discharge mode	Pneumatic drive
Moment motor powder for -63110mm PE pipe	40N.M*1 set
Moment motor powder for 20-50mm PE pipe	20N.M*1 set
Air pressure	0.5-0.6Mpa

Product packaging

Company Profile

Zhangjiagang Sevenstars Machinery Co.,Ltd. was founded in 2006. it is an enterprise specialized in producing plastic machinery.it lies to the south of the middle and lower reches of Yangtze River.It is located in the National civilization and hygienic city-zhangjiagang , Surrounded by the economic belt of Suzhou,Wuxi,Changzhou,Nanjing and Shanghai.Both land and river transports are rather convenient.We sell our products to Europe middle,Africa and Asia,etc country and region.Our products enjoy a high reputation home and abroad.

Our clients

FAQ

1.who are we?
We are based in Jiangsu, China, start from 2006,sell to Africa(00.00%),South Asia(00.00%),Mid East(00.00%),South
America(00.00%),Southeast Asia(00.00%),Southern Europe(00.00%),Eastern Europe(00.00%),North America(00.00%),Western Europe(00.00%),Oceania(00.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Domestic Market(00.00%). There are total about 51-100 people in our office.

2.what can you buy from us?
Plastic Shredder Machine,Plastic Washing Recycling Line,Plastic Pelletizing Recycling Line,Pet Bottle Recycling
Line,PlasticExtrusion Line,Pp Meltblown Fabric Machine

3.How about the quality about this machine?
Answer: yes,my friend,please rest assured,we have more than 15 years experience for this machine.quality is no problem

4.How about the output about this machine?is the data real?
Answer: my friend,we have tested that machine many times,then get this data,it is real and can meet your need.

5.Wether you deliver in time?
Answer: sure,once we receive your payment, then delivery immediately.

6.What about your after service?
Answer: Always final Inspection before shipment; we can send our engineers to you factory and offer long term technical guidance.

7. why should you buy from us not from other suppliers?
We have more than 10 years experience in fabricating the machine, we can fabricating the machine according to customer request. we
have good after service.

8. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY, Yen;
Accepted Payment Type: T/T,L/C,Escrow;
Language Spoken:English,Chinese,Russian

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
